1/4" Quilting Foot with Integrated Spring Guide for Singer Slant Needle (Slant Shank) Machines

Part Number: P60617

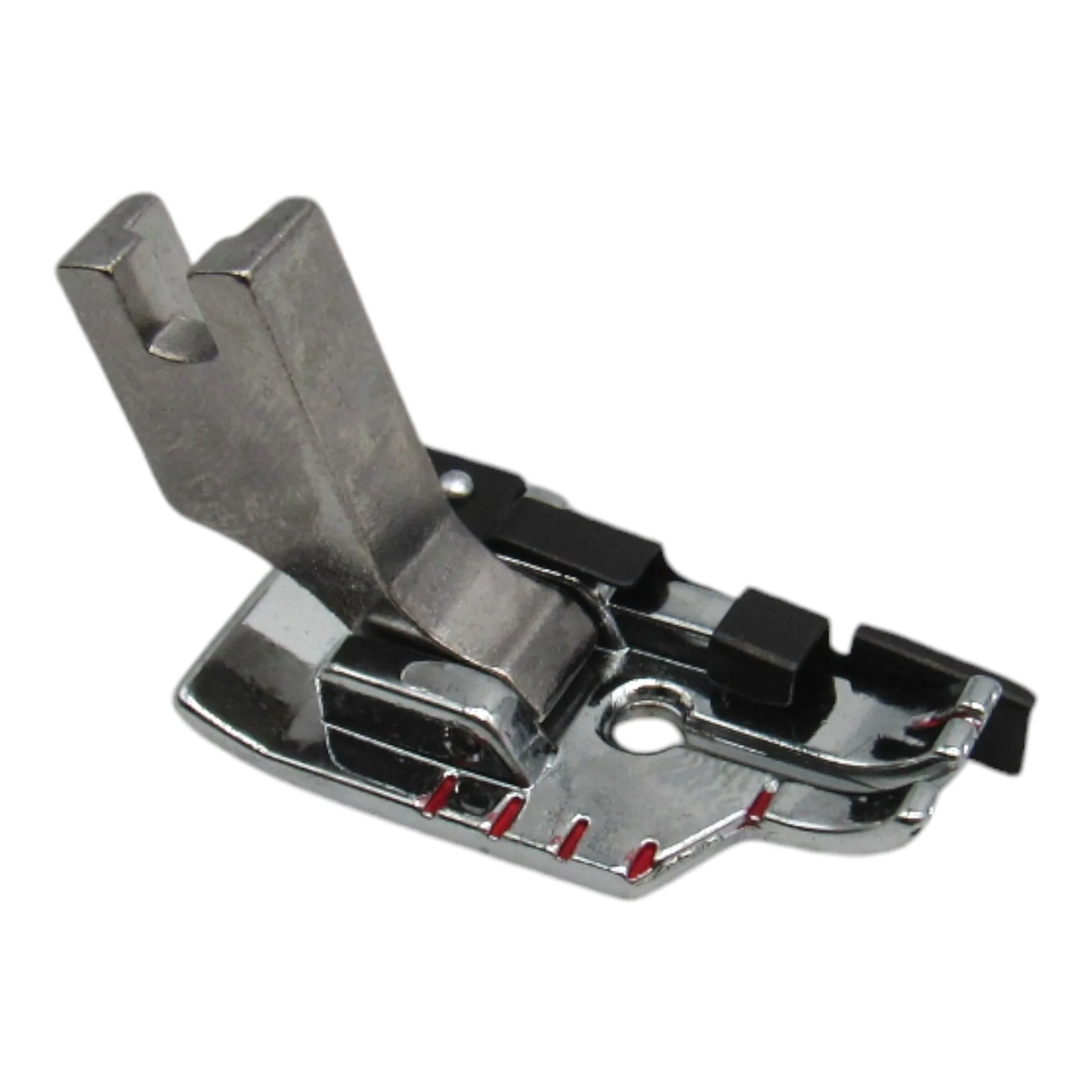

This precision 1/4" quilting foot is designed for Singer slant needle sewing machines, featuring durable all-metal hinged construction with an integrated spring guide. The built-in metal flange flexes slightly to ride smoothly over varied fabric thicknesses and bulky seam intersections while keeping fabric edges perfectly aligned for consistent, accurate 1/4-inch (6mm) seam allowances.

Key Features:

• All-metal hinged construction for long-lasting durability
• Integrated spring guide flexes over varying fabric thicknesses
• Fixed 1/4" reference from center needle to right edge
• Horizontal markings for precise corner pivoting
• Maintains even pressure and stability over bulky seams
• Compatible with Singer slant needle (slant shank) machines

Perfect For:

• Patchwork and Piecing: Essential for sewing 1/4" seams on quilt blocks, ensuring accuracy for proper assembly
• Precision Topstitching: Narrow, uniform stitching lines parallel to edges on small projects and doll clothes
• Delicate Fabrics: Stable support around needle prevents lightweight fabrics from being pulled into needle plate hole
• Bulky Seams: Spring action maintains alignment over intersecting seams and varying thicknesses

How the Integrated Spring Guide Works:

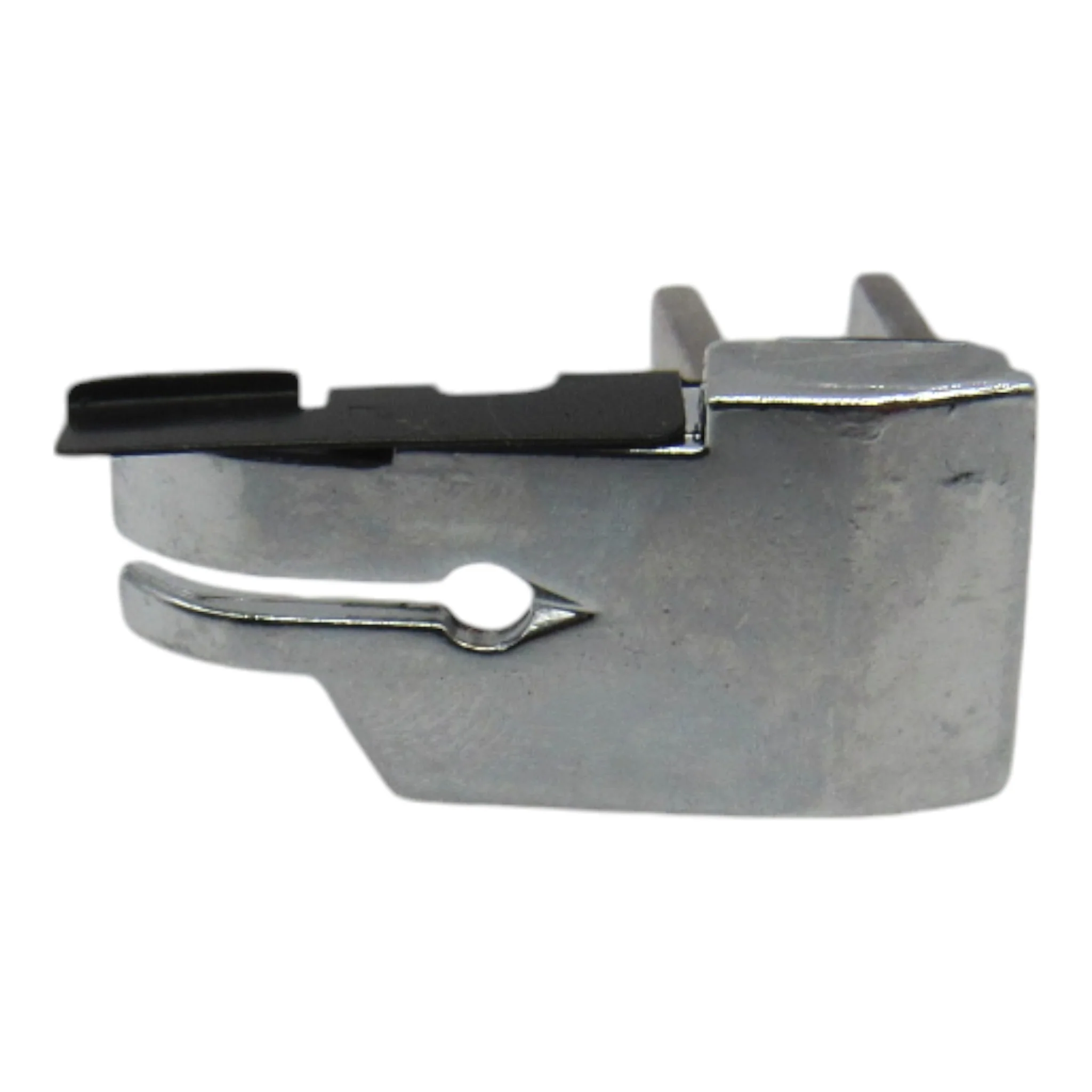

The P60617 foot features a built-in metal flange along the right edge that provides both guidance and flexibility. The distance from the center needle position to the rightmost edge of this spring guide is exactly 1/4 inch. Simply align the raw edge of your fabric against the right edge of the metal guide, and the spring action helps the foot maintain even pressure and stability as it moves over different fabric thicknesses or intersecting seams without losing the precise 1/4" measurement. This flexible design eliminates the need for constant adjustment while ensuring perfectly consistent seams.

Using the Foot:

1. Set Your Machine: Use straight stitch with needle in center position
2. Align Fabric: Position raw edge of fabric against the right edge of the integrated spring guide
3. Sew: The spring guide flexes to accommodate varying thicknesses while maintaining perfect 1/4" alignment
4. Pivot Corners: Use horizontal markings as visual guides for stopping and pivoting at corners (stop when fabric edge meets front line for perfect turn)

Why 1/4" Seams Matter:

Consistent 1/4-inch seams are essential for patchwork and quilting because even small variations accumulate across multiple seams, causing quilt blocks to misalign. The P60617 foot eliminates guesswork by providing a reliable, physical spring guide that delivers perfectly uniform seams every time, allowing your quilt blocks to fit together flawlessly.

Spring Guide Advantages:

• Flexibility: Spring action accommodates varying fabric thicknesses without losing alignment
• Smooth Operation: Rides effortlessly over bulky seam intersections
• Consistent Pressure: Maintains even pressure across different fabric layers
• No Adjustment Needed: Integrated design eliminates manual guide bar positioning

Tips for Best Results:

• Keep fabric edge aligned with right edge of spring guide throughout seam
• Spring action automatically adjusts to fabric thickness variations
• Use horizontal markings for accurate corner pivoting
• Stable design prevents delicate fabrics from puckering
• All-metal construction ensures durability and precision
• Perfect for both simple piecing and complex quilt block assembly

Compatible with Singer Slant Needle Models:

301, 401A, 403A, 404, 411, 417, 421, 431, 500A, 503A, 600, 603, 604, 620, 625, 626, 628, 629, 630, 635, 636, 638, 639, 645, 646, 648, 649, 714, 719, 724, 734, 737, 750, 755, 756, 758, 770, 774, 775, 776, 778, 900, 920, 925, 935U, 100G, 1030, 1036, 1060, 1100, 1200, 1411N, 1411U, 1425N, 1425U, 2000, 2001, 2005, 2010, 4552, 4562, 4572, 4610, 4611, 4613, 4617, 4622, 4623, 5910, 5932, 6230, 6233, 6234, 6235, 6244, 6267, 6268, 7000, 7004, 7005, 7011, 7028, 7029, 7033, 7035, 7037, 7043, 7050, 7060, 8019, 9005, 9008, 9010, 9015, 9018, 9020, 9022, 9027, 9030, 9032, 9034, 9044, 9110, 9113, 9117, 9124, 9130, 9133, 9134, 9137, 9143, 9210, 9217, 9224, 9240, 9323, 9334, 9410, 9416, 9417, 9420, 9423, 9430, 9432, 9444, 9900, 30920, 93220, 93234, DX14C

Quality aftermarket part designed for Singer slant needle machines.
