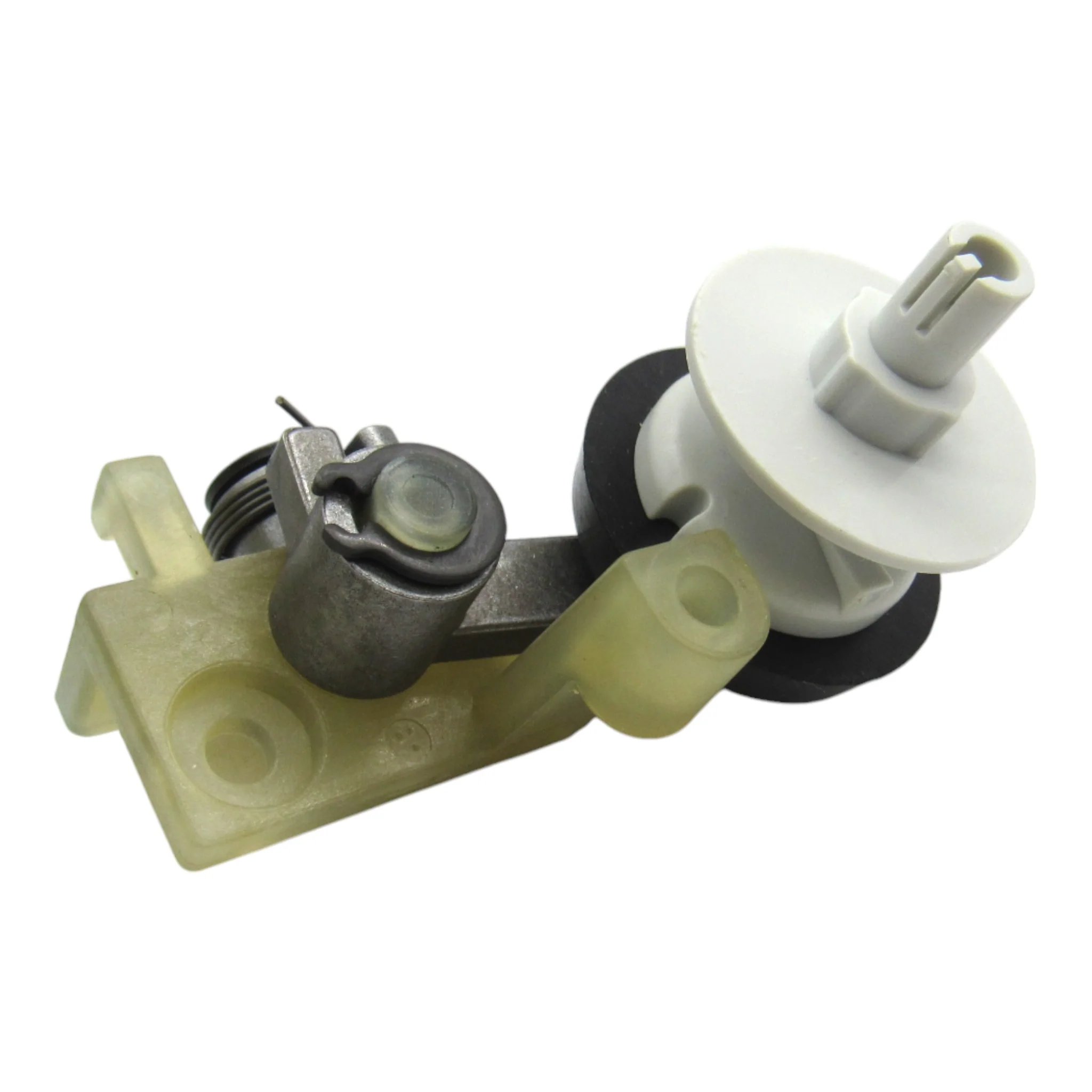

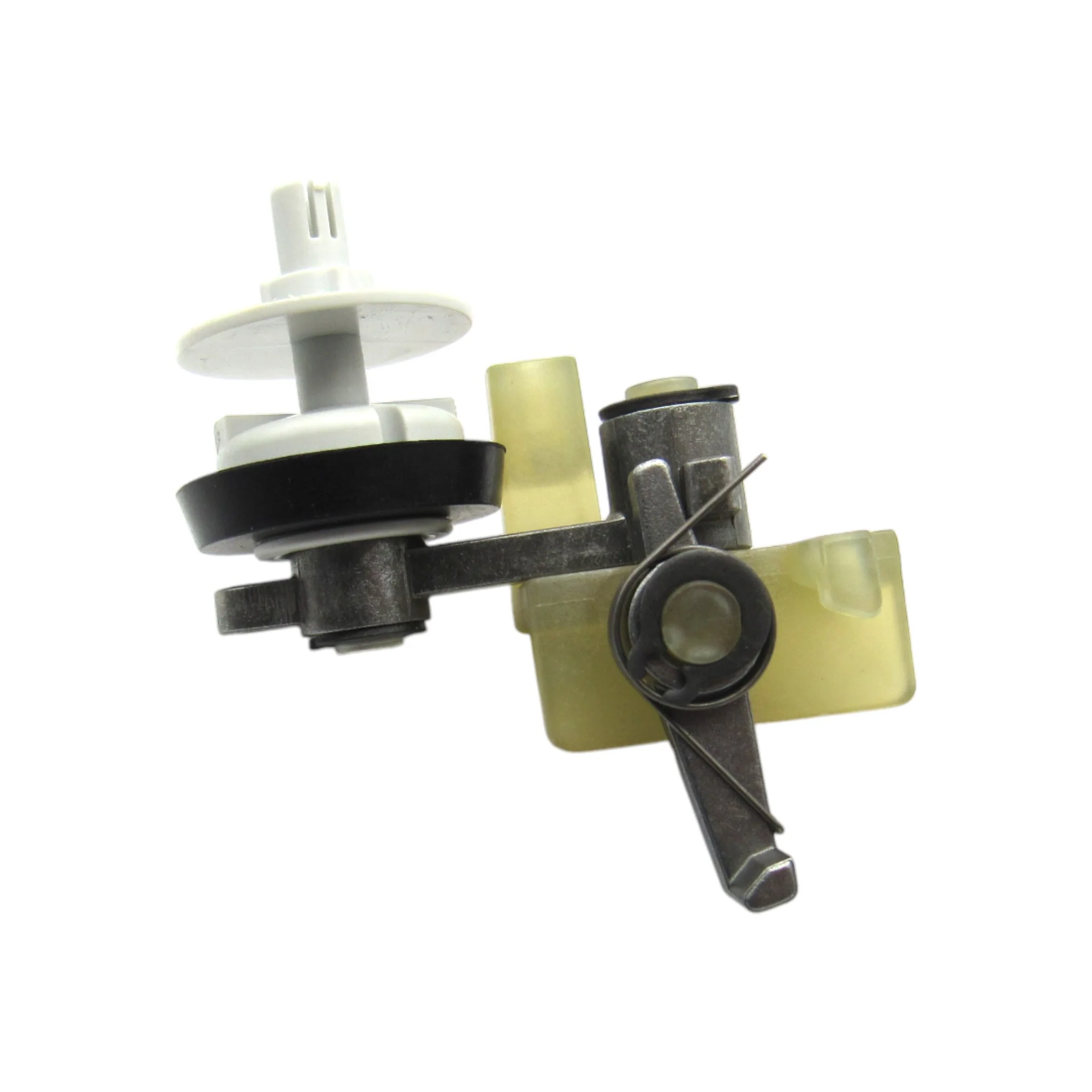

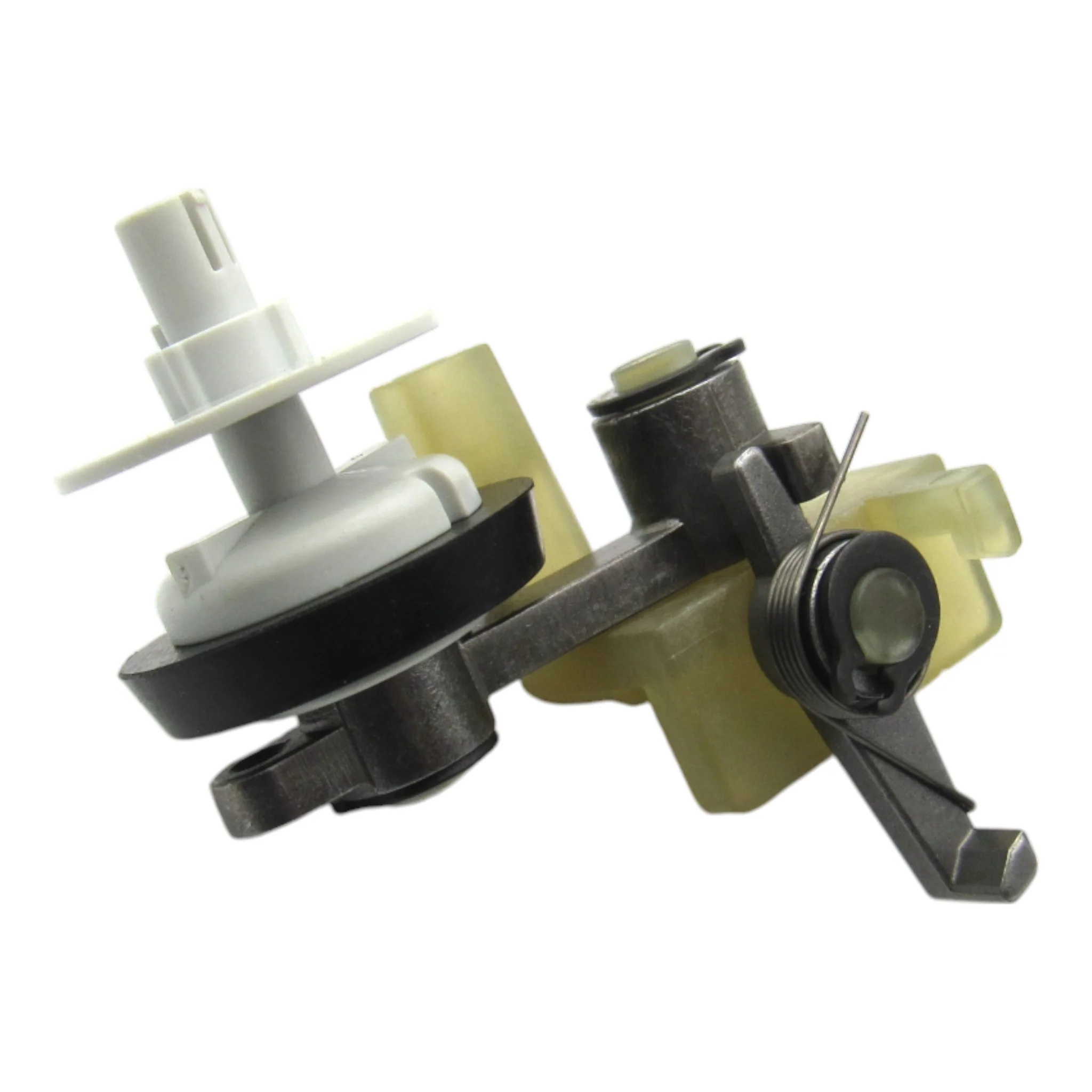

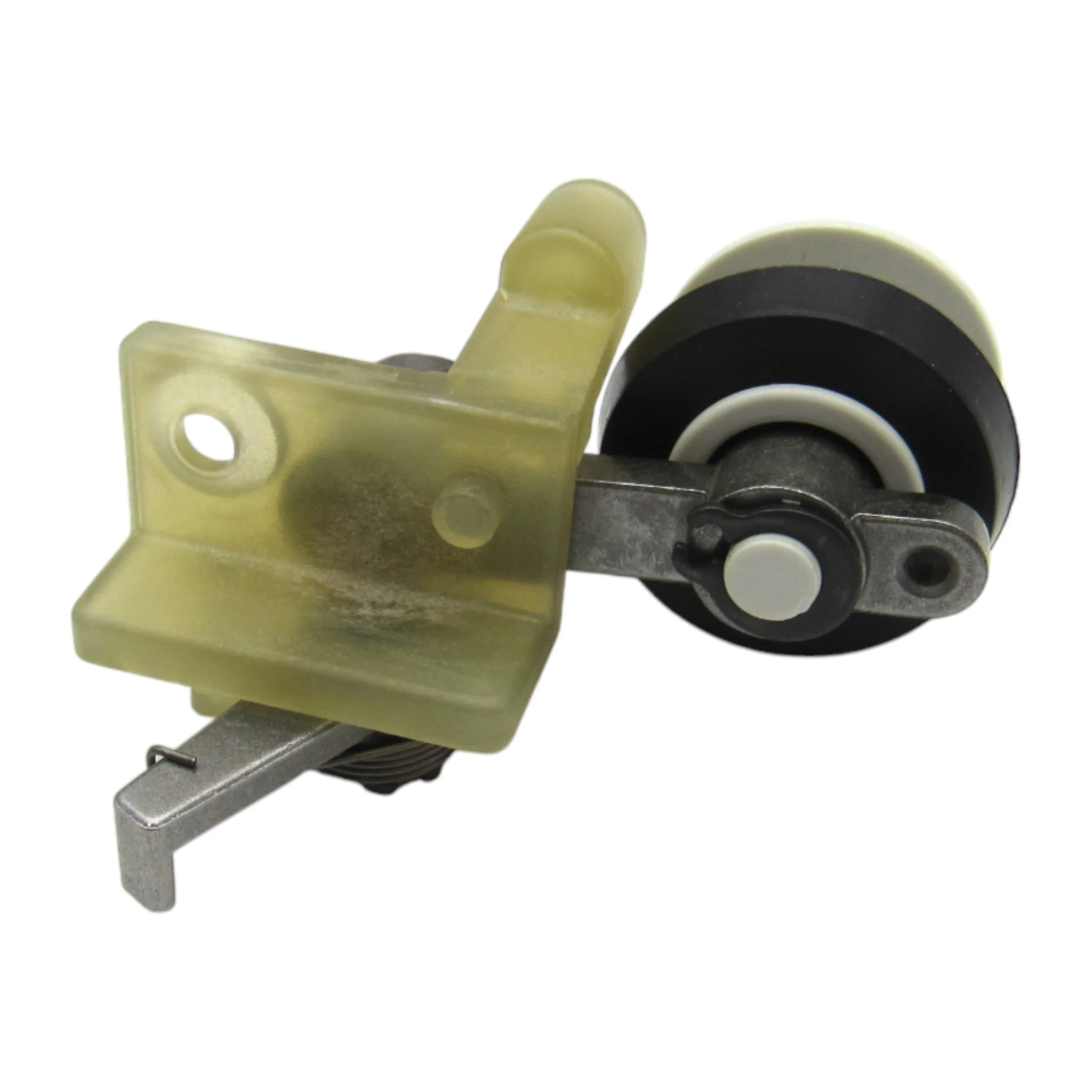

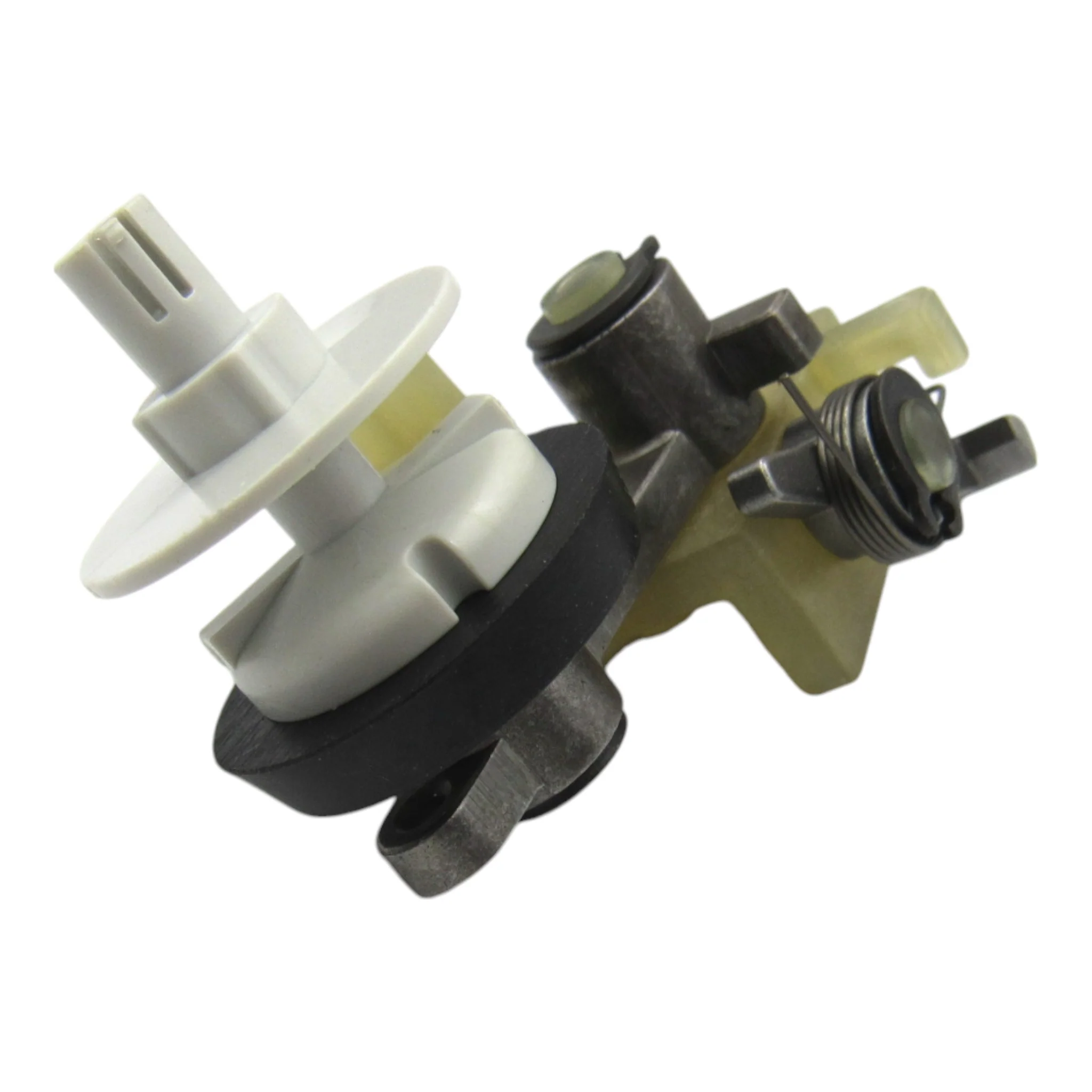

Pfaff Bobbin Winder Complete - Part #93-038130-91

Part Number: 93-038130-91

Type: New replacement bobbin winder complete assembly

Compatibility: Pfaff Expression, Creative, and Performance Series

Machine Compatibility:

This replacement bobbin winder complete assembly (Part #93-038130-91) is guaranteed to fit a wide range of Pfaff Expression, Creative, and Performance models:

Expression Series: 2014, 2024, 2026, 2028, 2034, 2036, 2038, 2044, 2046, 2048

Creative Series: 2124, 2134, 2136, 2140, 2142, 2144, 2146, 2170

Performance Series: 2054, 2056, 2058

Other Compatible Models: 2010, 2012, 2020, 2022, 2023, 2025, 2027, 2029, 2030, 2032, 2040, 2042

Overview:

The Pfaff Bobbin Winder Complete (Part #93-038130-91) is a mechanical assembly used to wind thread onto bobbins. This essential component is designed for the integrated winding systems found on the top or side of various computerized Pfaff sewing machines. When your bobbin winder stops working properly - whether it won't engage, spins inconsistently, or fails to stop when the bobbin is full - this complete replacement assembly restores reliable bobbin winding to your Pfaff machine.

Function and Features:

Complete Bobbin Winding Assembly:

This assembly holds the bobbin securely in place and engages with the machine's motor or handwheel to rotate and fill the bobbin with thread. It's a complete mechanical unit ready to install, providing everything you need to restore your bobbin winding function.

Automatic Stopper Mechanism:

The assembly includes a built-in automatic stopper that disengages the winding process once the bobbin is full. This prevents overfilling and ensures consistent bobbin tension every time. No more watching and guessing when your bobbin is ready - the stopper does it for you.

Friction-Drive Design:

This bobbin winder uses a specific Bobbin Winder Tire (Part #93-101815-05) to create the necessary friction for rotation. The tire is the rubber component that contacts the bobbin and drives the winding action. If your current winder tire is worn or cracked, this complete assembly includes a fresh tire for reliable performance.

Integrated Design for Computerized Pfaff Machines:

Designed specifically for the integrated winding systems on Pfaff's computerized Expression, Creative, and Performance series machines. This is the bobbin winder that's built into your machine - not a separate external winder.

When to Replace Your Bobbin Winder:

Replace your bobbin winder assembly if you experience:

Bobbin won't spin or winds inconsistently - The winder tire may be worn or the mechanism damaged

Winder won't engage - The engagement mechanism may be broken or worn

Automatic stopper doesn't work - Bobbins overfill or winder doesn't disengage when full

Visible damage or wear - Cracked tire, broken parts, or excessive play in the mechanism

Bobbin winding is noisy or rough - Worn components causing friction or binding

Installation:

This is a complete bobbin winder assembly designed to replace your existing winder unit. Installation typically involves removing the old winder assembly and installing this new unit in its place. Consult your Pfaff service manual for specific installation instructions for your model.

Maintenance Note:

The bobbin winder tire (the rubber friction component) is a wear item that may need periodic replacement even if the rest of the assembly is functioning properly. If you only need the tire, we also carry Bobbin Winder Tire Part #93-101815-05 separately. However, if your winder has other issues beyond just a worn tire, this complete assembly is the solution.

Why Choose a Complete Bobbin Winder Assembly?

When your bobbin winder fails, replacing the complete assembly ensures all components - the spindle, stopper mechanism, tire, and mounting hardware - are fresh and working together properly. This eliminates the guesswork of diagnosing which individual component has failed and provides reliable, long-lasting performance.

Professional Tip:

Keep your bobbin winder working smoothly by occasionally cleaning lint and thread debris from around the winder mechanism. A clean winder lasts longer and winds more consistently. If you notice the tire becoming glazed or slippery, it may be time for replacement.
