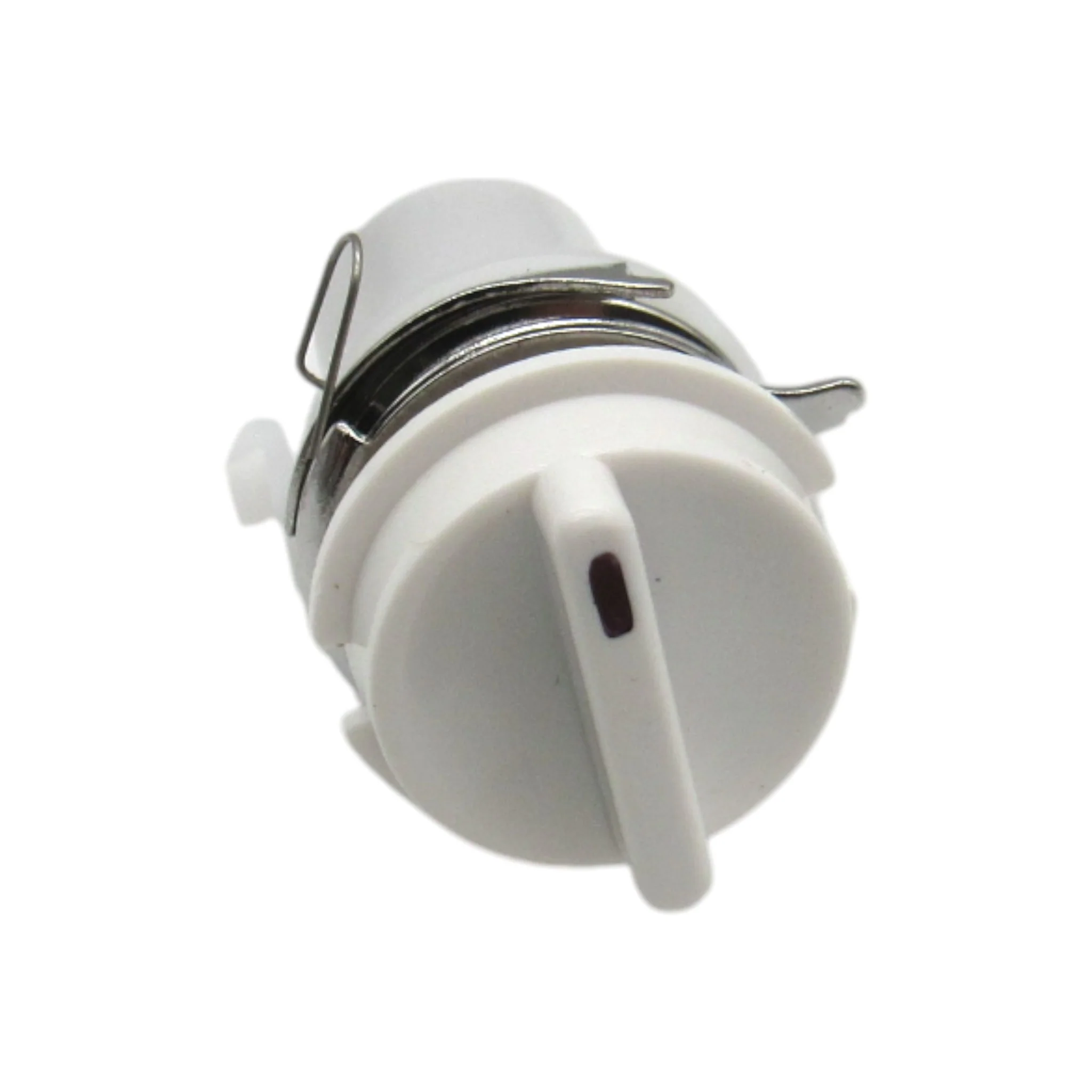

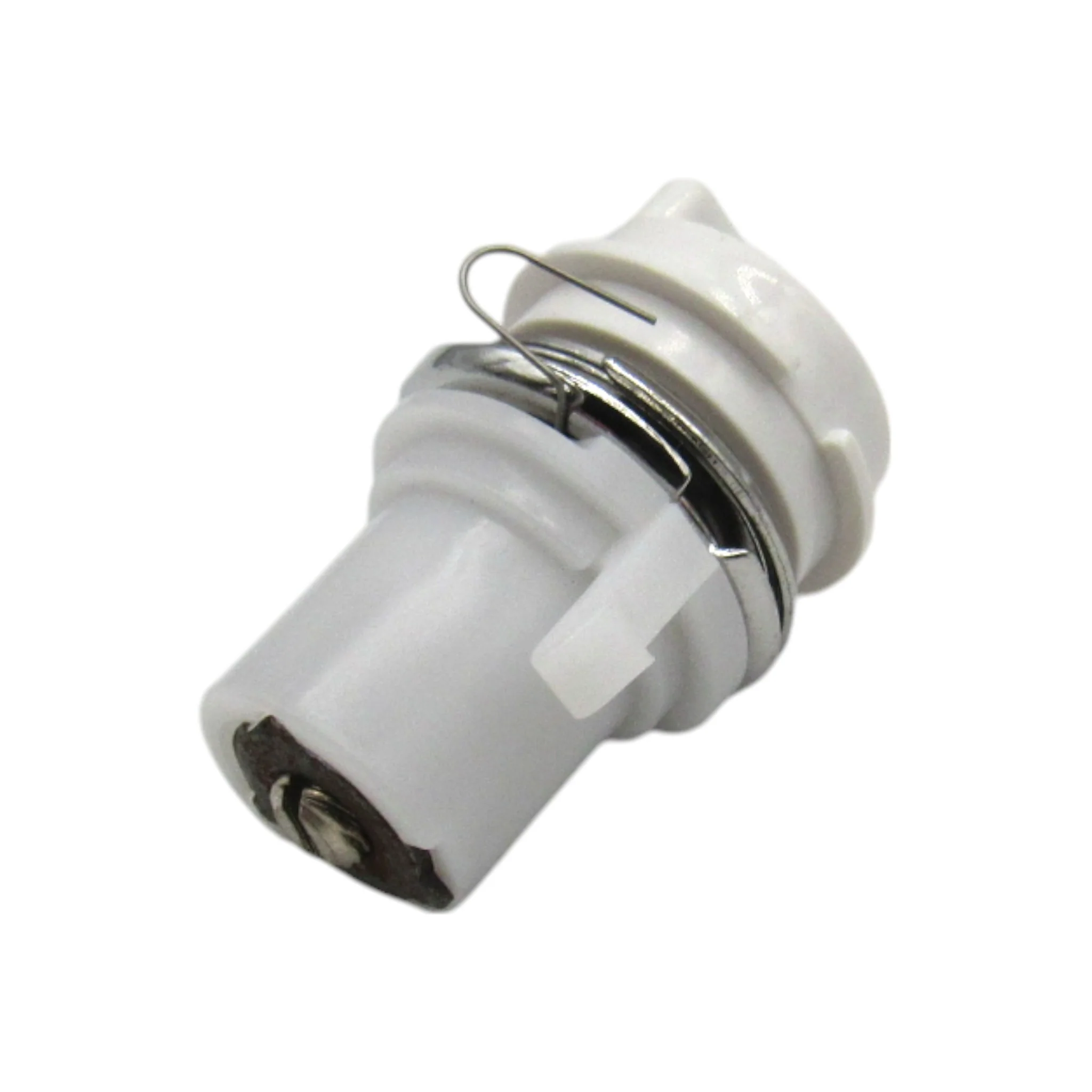

Upper Tension Assembly Complete for Singer - Part # 356088-457
This complete replacement upper tension assembly (part # 356088-457) is designed for Singer sewing machines. The upper tension assembly is a critical component that controls the tension of the upper thread as it passes from the spool to the needle, ensuring balanced stitches and preventing thread breakage, loops, or puckering. This complete assembly includes all necessary components for proper tension control.
Specifications:
- Part Number: 356088-457
- Type: Replacement (aftermarket)
- Configuration: Complete upper tension assembly
- Barrel Diameter: 21/32 inch
- Spring Direction: Spring pulls up
- Function: Controls upper thread tension for balanced stitch formation
Machine Compatibility:
Fits Singer models: 2302, 2303, 2304, 2313, 2315, 2330, 2502, 2503, 2504, 2505, 2515, 2530, 2543, 2601, 2602, 2603, 2604, 2605, 2615, 2616, 2628, 2630, 2643, 2950, 3270, 3314, 3317, 3343, 4325, 4620, 5017, 5028, 5040, 5050, 5160, 5417, 5430, 5605, 5610, 5705, 5710, 57820, 57825, 5802, 5805, 5806, 5808, 5810, 5812, 5814, 5816, 5818, 5820, 5825, 5830, 5838, 6038, 6620, 7211, 7212, 8220, 9802, 9803, 9805, 9806, 9808, 9810, 9812, 9814, 9816, 9818, 9824, 9828, 9832, 9836, 9936, CG500, CG550, CG590, DX-14C, FM17, FM17 (NEW), FM19, FM19 (NEW), FM22, FM22 (NEW), HD102, HD105, HD110
Function & Benefits:
The upper tension assembly is essential for achieving balanced, professional-quality stitches. It applies controlled pressure to the upper thread, working in conjunction with the bobbin tension to create even stitches without loops, puckering, or thread breakage. Proper tension control is critical for sewing different fabric weights and thread types. A complete assembly replacement ensures all tension components work together correctly for optimal performance.
Installation Note:
Replace a damaged, worn, or malfunctioning upper tension assembly to restore proper thread tension control. Ensure the assembly is properly installed with the spring oriented correctly (pulls up) and adjust the tension dial to suit your fabric and thread type for optimal stitch quality.
