Walking Foot 7mm - Janome, Elna, Kenmore - Top Loading Bobbin - Low Shank
Walking Foot / Even Feed - 7mm Width - Top Loading Bobbin

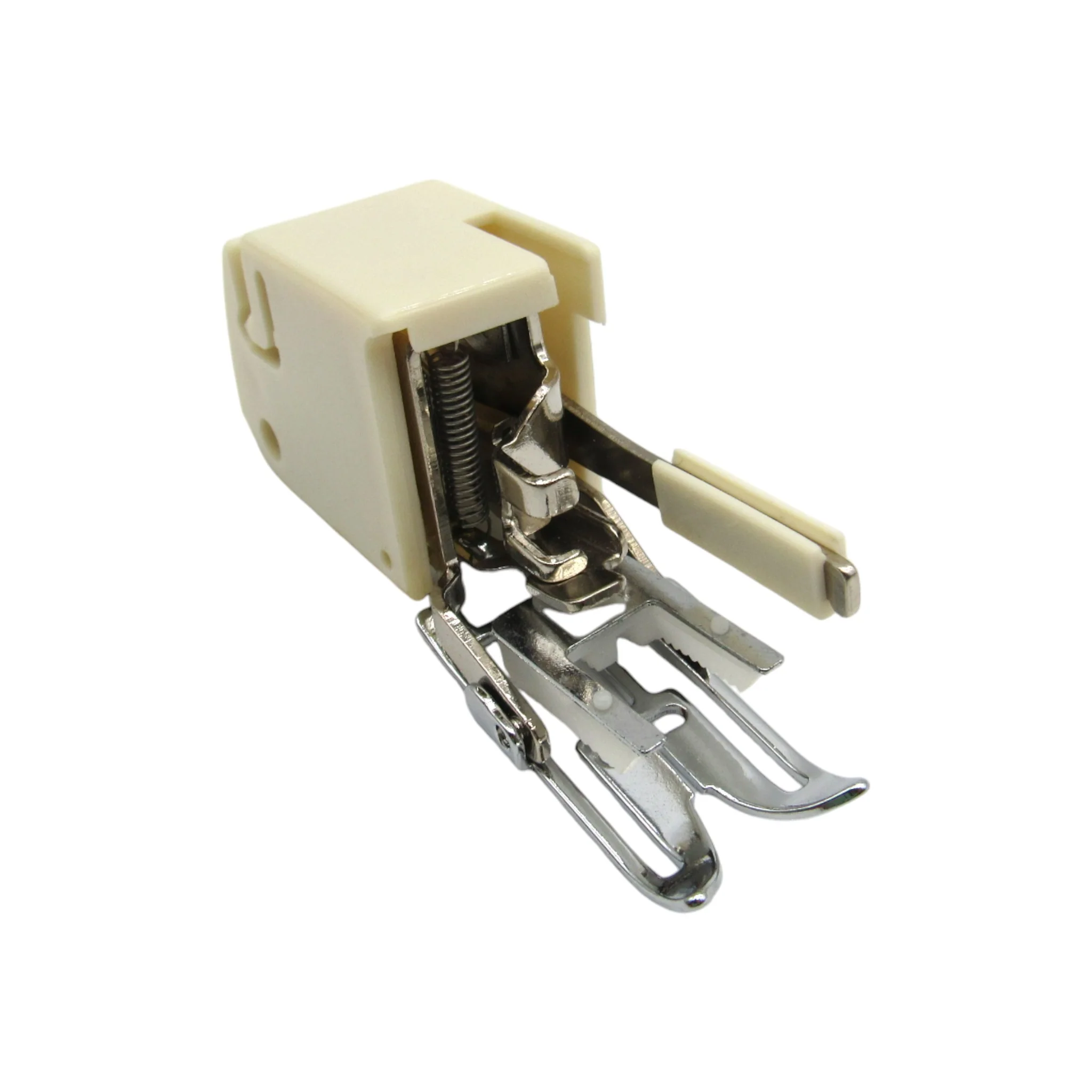

This replacement walking foot (even feed foot) is designed for low shank sewing machines with a maximum 7mm zigzag stitch width and top-loading bobbin case. Includes guide bar for quilting and topstitching. Fits Janome, Elna, and Kenmore models. Compatible with part #214874013.
What's Included
- Walking foot / even feed foot
- Guide bar - For consistent seam spacing and quilting
IMPORTANT: 7mm Width & Top Loading Compatibility
This walking foot is designed for machines with:
- Maximum 7mm zigzag stitch width
- Top-loading bobbin case (bobbin loads from the top of the machine)
- Low shank
⚠️ WARNING: Using the wrong width walking foot can result in the needle hitting the foot, causing broken needles, damaged foot, or injury. Always verify your machine's maximum zigzag width before purchasing.
How to check your machine's zigzag width: Set your machine to the widest zigzag stitch setting. If it goes to 7mm, this is the correct foot. If it only goes to 5mm, you need a 5mm walking foot instead. If it goes to 9mm, you need a 9mm walking foot.
How to identify top-loading bobbin: If your bobbin drops into the machine from the top (you can see it when you remove the needle plate or bobbin cover), you have a top-loading bobbin case. If your bobbin case slides in from the front, you need a front-loading walking foot instead.
Key Features
- 7mm width - For machines with 7mm max zigzag stitch
- Top-loading bobbin design - Fits machines with top-loading bobbin case
- Low shank - Fits most low shank machines
- Even feed system - Top and bottom layers feed evenly together
- Guide bar included - Maintains consistent spacing for quilting
- Prevents fabric shifting - Keeps layers aligned perfectly
Perfect For
- Quilting - Keeps all layers moving together, guide bar ensures even spacing
- Matching plaids and stripes - Prevents pattern misalignment
- Fabrics with nap or pile - Velvet, corduroy, fleece
- Multiple fabric layers - Prevents top layer from shifting
- Difficult fabrics - Slippery, stretchy, or uneven materials
- Topstitching parallel seams - Guide bar maintains consistent spacing
- Preventing puckering - Smooth, even seams
How It Works
The walking foot has feed dogs on top that work in sync with your machine's bottom feed dogs. This dual-feed system grips fabric from both top and bottom, ensuring all layers move through the machine at the same rate. This prevents the top layer from shifting, bunching, or slipping - essential for quilting, matching plaids, and working with fabrics that have nap or pile.
The included guide bar attaches to the walking foot and helps you maintain consistent spacing between rows of stitching - perfect for quilting, topstitching parallel seams, and creating evenly-spaced decorative stitching.
Compatible Models
Fits low shank machines with 7mm maximum zigzag width and top-loading bobbin case, including:
Elna: 2002, 2004, 2006, 2600, 2800, 3003, 3005, 3007, 3210, 3230, 5100, 5200, 5300, 6001, 6003, 6004, 6005 Heirloom, 6200, 6600, 7200 Pro Quilter's Dream, 8100, ec30, Lotus, Lotus 2, Star Edition, 520 eXperience, 540 eXperience, 620 eXperience, 660 eXperience, eXperience 450, 520s, 530, 540s, 550, 560, 570, eXplore 150, 160, 320, 340
Janome / New Home: 190, 360, 380, 381, 405, 415, 419S, 423S, 509, 530, 531, 609, 609NH, 611, 618, 619, 620, 621, 623, 625 (old), 625E Sewist, 625FA, 626, 630, 631, 632, 639 (Jem), 640, 641, 642, 651, 652, 653, 656, 657, 657A, 659, 660 Jem Gold, 661 (Old), 661 (Jem Gold 2), 662, 665 Jem Gold 3, 680, 681, 681D, 684, 692, 693, 710, 712T, 763, 791FA, 793, 795FA, 802, 803, 808, 808A, 844, 900, 910, 921, 990, 1017, 1117S, 2000, 2003P, 2018S, 2022, 2030DC, 2039SN, 2040, 2041, 2041LX, 2041NX, 2041S, 2041SX, 2049LX, 2049NX, 2118S, 2139S, 2141S, 2149SX, 2160DC, 2160DC, 222A, 3128, 3160QDC, 4045LX, 4045NX, 4048, 4052, 4119 (Quilter's Delight), 4120QDC, 4123, 4612TM, 4618LE, 4623, 4623LE, 49018, 49360, 5001, 5018, 5060QDC, 5120QDC, 5124, 5270QDC, 525S, 5300QDC-T, 5812 (HF5812), 6019QC, 6050, 6100, 6125QC, 6260QC, 7061NX, 706NX, 7306, 7312, 7318 Magnolia, 7325 Magnolia, 7330 Magnolia, 7360 Magnolia, 8048 Harmony, 8050, 8077, 8080, 9500, AMH-M100 Anna Maria Horner, AQS2009, CE2200, Classmate S-750, COMBI 10, CS5031, DC1018, DC1050, DC2007LE, DC2010, DC2011, DC2012, DC2013, DC2014, DC2019, DC3018, DC3050, DC3200, DC4030, DC4030P, DC4100, DC5100, DC6030, DC7100, DE5018, DE5024, DE5124, Decor 5018, 5024, 5124, Decor Excel Pro 5124, DS3500, DX2015, DX2022, DX2030, DX502, EasyJeans 22, FA772, FD206, FD212, FD216, Harmony 1017, 2041, 4045, 4052, 4052LX, HD3000, Hello Kitty 15822, 18750, HF106, HF107, HF1012, HF2022, HF3000, HF3022, HF3125, HF4045LX, HF5024, HT2008, HT2008LE, JA104, JA106, JA1502, JA1504, JA1506, JA1508, JA1510, JA1512, JA1518, JD1803, JA1804, JD1806, JD1810, JD1812, JD1814, JD1816, JD1818, JD1822, Jem Gold, Jem Gold 2, Jem Lite, JF1004, JF1012, JF1014, JF1018, JF1018S, JF1022, JP720, JP760, JS1003, JS1004, JS1008LE, JW7630, JW8100, L108, L109, L110, L344, L352, L353, L372, L373, L392, L393, LR1612, LR1616, LR1618, LR1622, M7100, M7200, MC2400, MC3000, MC3500, MC4000, MC4400, MC4800, MC4800Q, MC4900QC, MC5001, MC5002, MC5500, MC6000, MC6300P, MC6500P, MC7000, MC7500, ME3015, ME3023, ME3123, ME4014, ME4018, ME4123, ML3023, MOD-15, MOD-19, MOD-30, MOD-50, MOD-100, MOD-100Q, MOD-200, MS-3015, MS5021, MS5027, MW3018 (MyExcel 18W), My Excel 18, 23, 4014, 4018, 4023, 4123, MyExcel 23L, MyStyle100, NH2014, NH2014LE, NQM2016, QS2250, RX18, RX18S, RX22, S2015, S-650, Schoolmate S-3015, S-7330, SC5021, SD2014, Sew Precise, Sewist 500, 521, 525, 625E, 721, 725S, SL2022, SR2000, SR2100, SS2015, SW2018E, XL601
Kenmore: 385.11206300, 385.14052200, 385.1584180, 385.16020, 385.16120, 385.16126, 385.16130, 385.16221300, 385.16520, 385.16524, 385.16528, 385.16530, 385.1684180, 385.16951, 385.17026, 385.17124, 385.17126, 385.17324, 385.17526, 385.17622, 385.17624, 385.17626, 385.17628, 385.17641, 385.17724, 385.17781, 385.17822, 385.17824, 385.1782480, 385.17826, 385.17828, 385.17881, 385.1788180, 385.17922, 385.17928, 385.18080, 385.18080200, 385.18230, 385.18330, 385.18630, 385.18830, 385.18836, 385.18841, 385.19110, 385.19157100, 385.19233400, 385.19365990
Fits all Janome low shank machines with top-loading bobbin case and 7mm max zigzag width.
Replacement Alternative
This is a replacement walking foot, not a genuine brand-name part. It's designed to fit low shank sewing machines with 7mm maximum zigzag width and top-loading bobbin case, offering excellent value for quilters and sewers who need even feed capability.
An essential accessory for any quilter or sewer working with challenging fabrics. This walking foot with guide bar will transform your quilting and ensure professional results every time.
