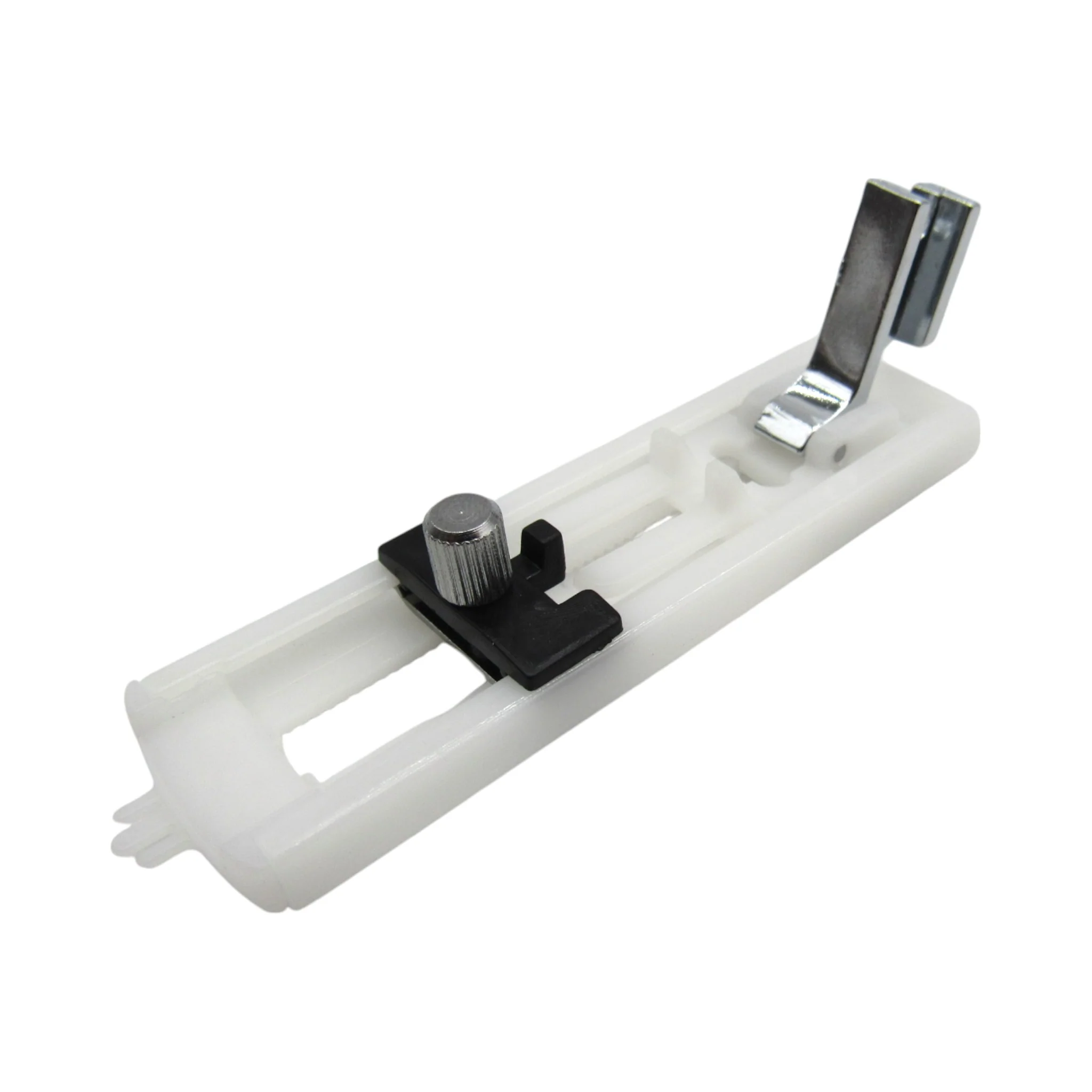

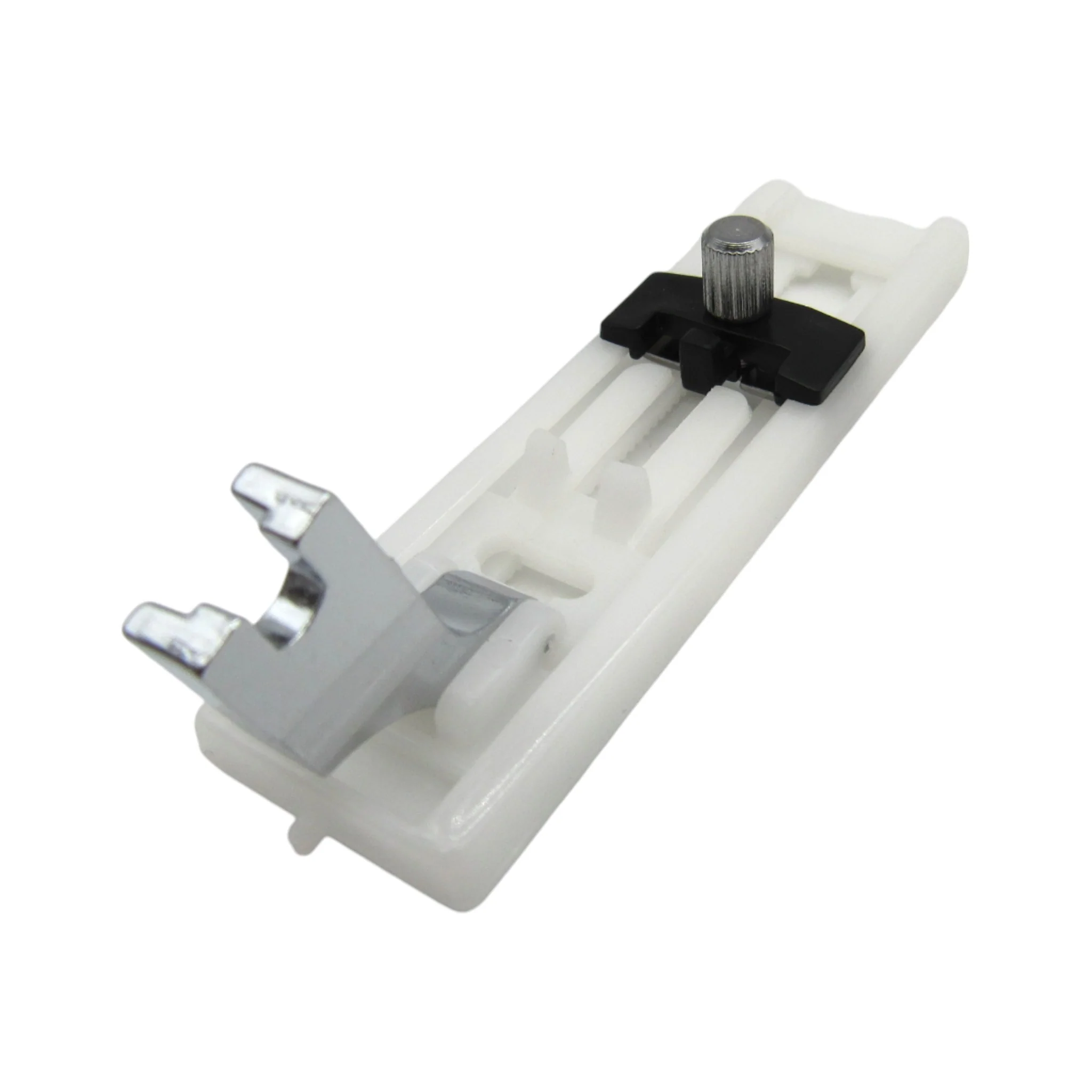

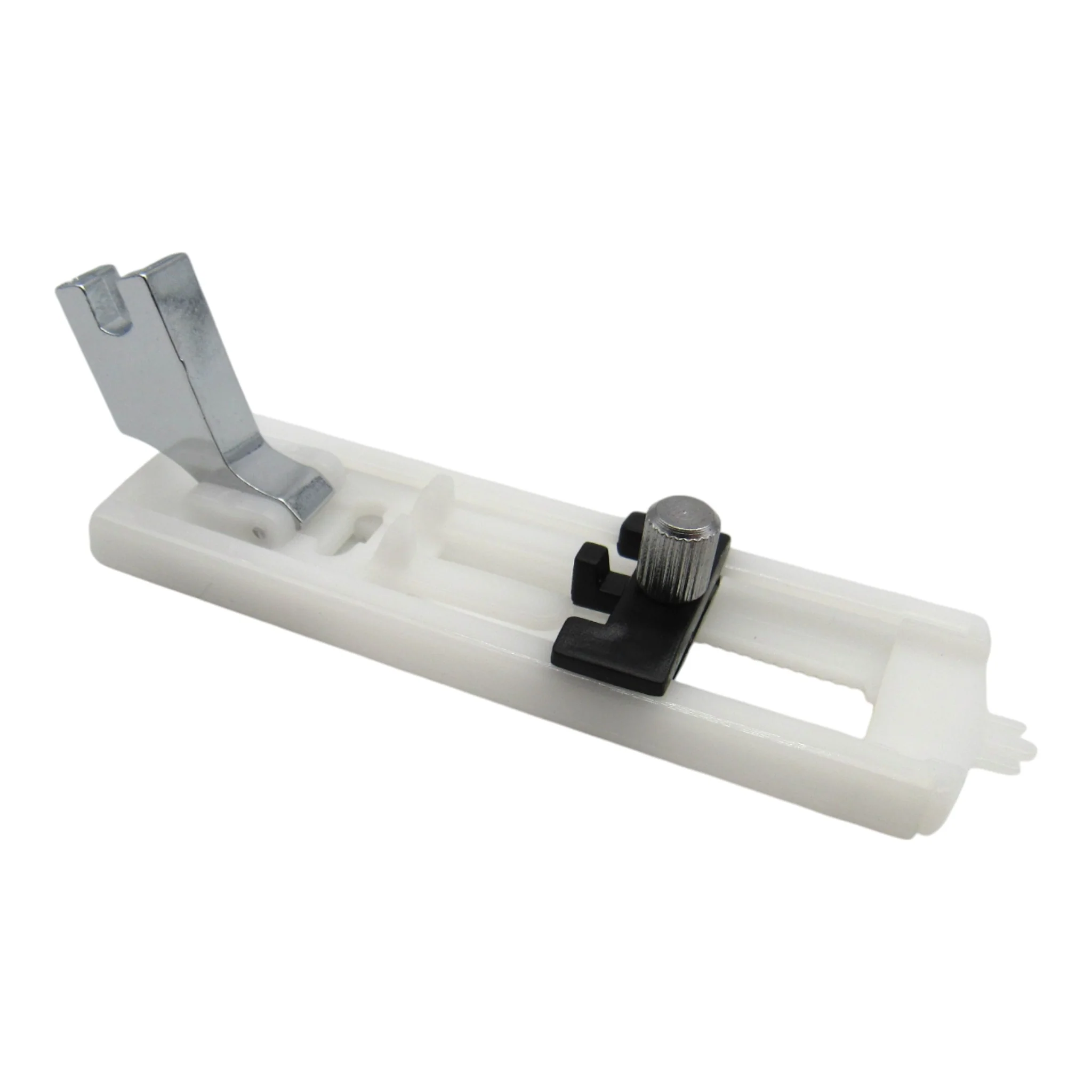

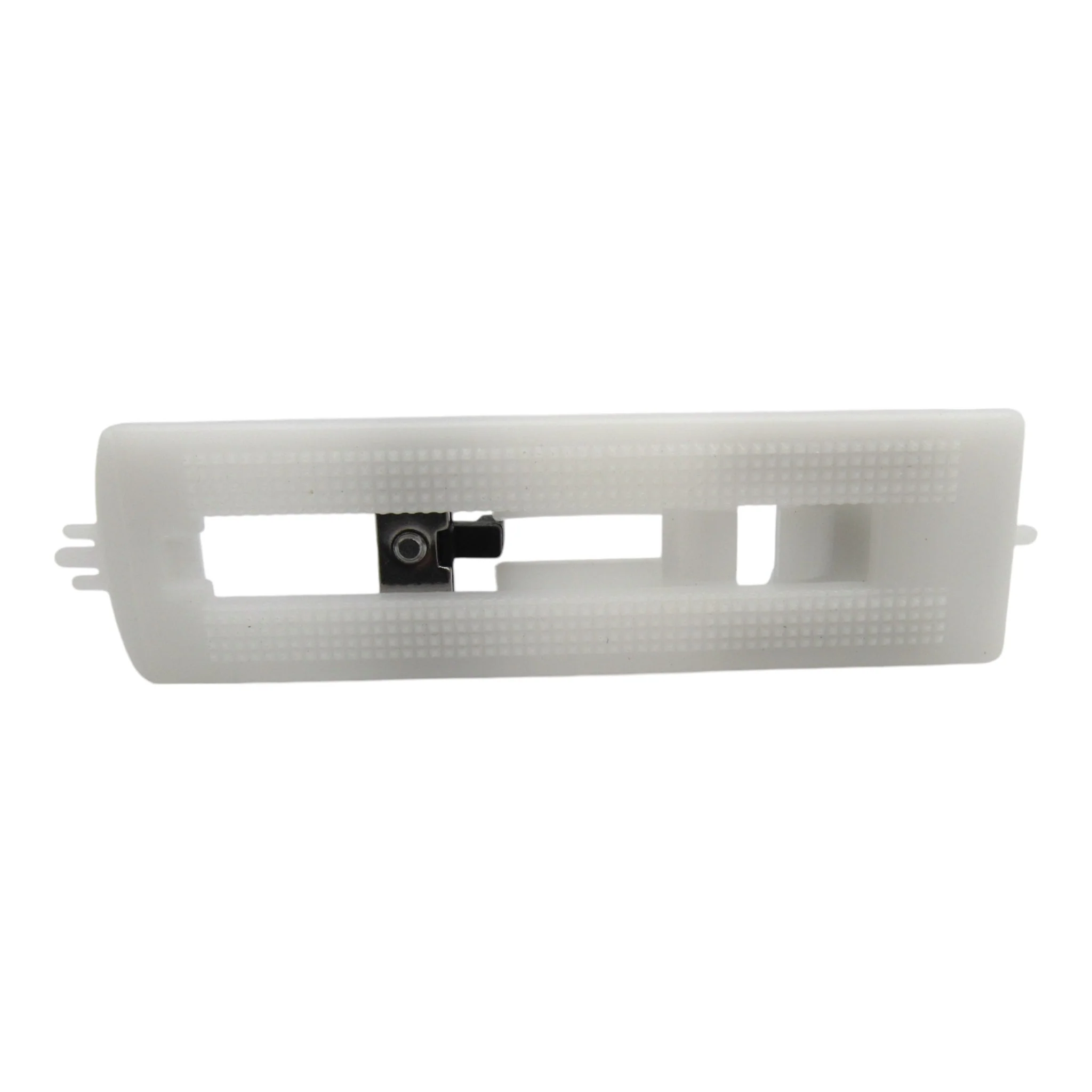

Buttonhole Foot - Self Sizing with Gauge for Singer Slant Needle (Slant Shank) Machines

Part Number: 1932S

This specialized buttonhole foot is designed for Singer slant needle sewing machines, featuring a hinged design with durable metal shank and plastic foot. The self-sizing gauge automatically creates uniform, perfectly sized buttonholes, eliminating the need for manual measuring and marking.

Key Features:

• Self-sizing gauge automatically determines correct buttonhole length
• Hinged design with metal shank and plastic foot for durability
• Creates perfectly uniform buttonholes every time
• Sliding holder at back accepts actual button for precise sizing
• Works with one-step or four-step buttonhole settings
• Compatible with Singer slant needle (slant shank) machines

Perfect For:

• Garments: Shirts, jackets, skirts, and dresses requiring identical buttonholes
• Home Décor: Cushion covers, curtains with drawstring openings
• Various Fabrics: Delicate materials to heavyweight or stretchy knits (use stabilizer as needed)

How It Works:

The #1932S buttonhole foot features a clever mechanical design that automatically determines the correct buttonhole length. Simply insert your actual button into the sliding holder at the back of the foot—this sets the required length. When you begin sewing in buttonhole mode, the foot's internal mechanism interacts with the machine's lever to automatically stitch the entire buttonhole from start to finish. The machine knows exactly when to stop stitching each side, create the bar tack (reinforcing stitches at the end), and reverse direction. Once set, every subsequent buttonhole will be perfectly identical in length and width.

Tips for Best Results:

• Stabilize Fabric: Use interfacing or tear-away stabilizer underneath fabric to prevent fraying and ensure neat stitches, especially on delicate or stretchy fabrics
• Practice First: Always test on a scrap piece of the same fabric to confirm size and tension settings
• Open Carefully: Use a seam ripper to open the finished buttonhole, placing a pin at each end of the bar tack to avoid cutting through stitches

Compatible with Singer Slant Needle Models:

401A, 403A, 417, 500A, 503A, 600, 603, 604, 620, 625, 626, 628, 629, 630, 635, 636, 638, 639, 645, 646, 648, 649, 714, 719, 724, 734, 737, 750, 755, 756, 758, 770, 774, 775, 776, 778, 900, 920, 925, 935U, 100G, 1030, 1036, 1060, 1100, 1200, 1411N, 1411U, 1425N, 1425U, 2000, 2001, 2005, 2010, 4552, 4562, 4572, 4610, 4611, 4613, 4617, 4622, 4623, 5910, 5932, 6230, 6233, 6234, 6235, 6244, 6267, 6268, 7000, 7004, 7005, 7011, 7028, 7029, 7033, 7035, 7037, 7043, 7050, 7060, 8019, 9005, 9008, 9010, 9015, 9018, 9020, 9022, 9027, 9030, 9032, 9034, 9044, 9110, 9113, 9117, 9124, 9130, 9133, 9134, 9137, 9143, 9210, 9217, 9224, 9240, 9323, 9334, 9410, 9416, 9417, 9420, 9423, 9430, 9432, 9444, 9900, 30920, 93220, 93234, DX14C

Quality aftermarket part designed for Singer slant needle machines.
