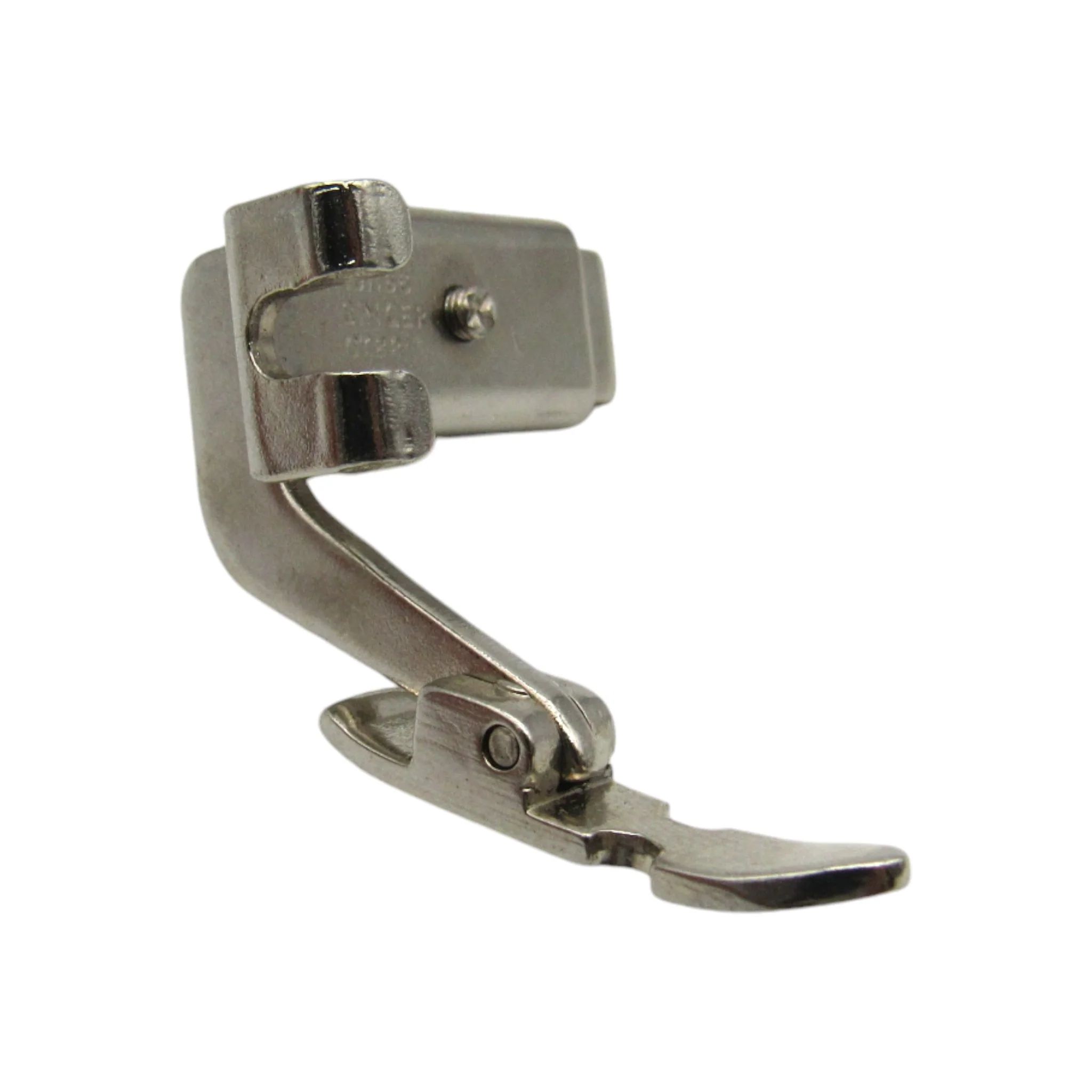

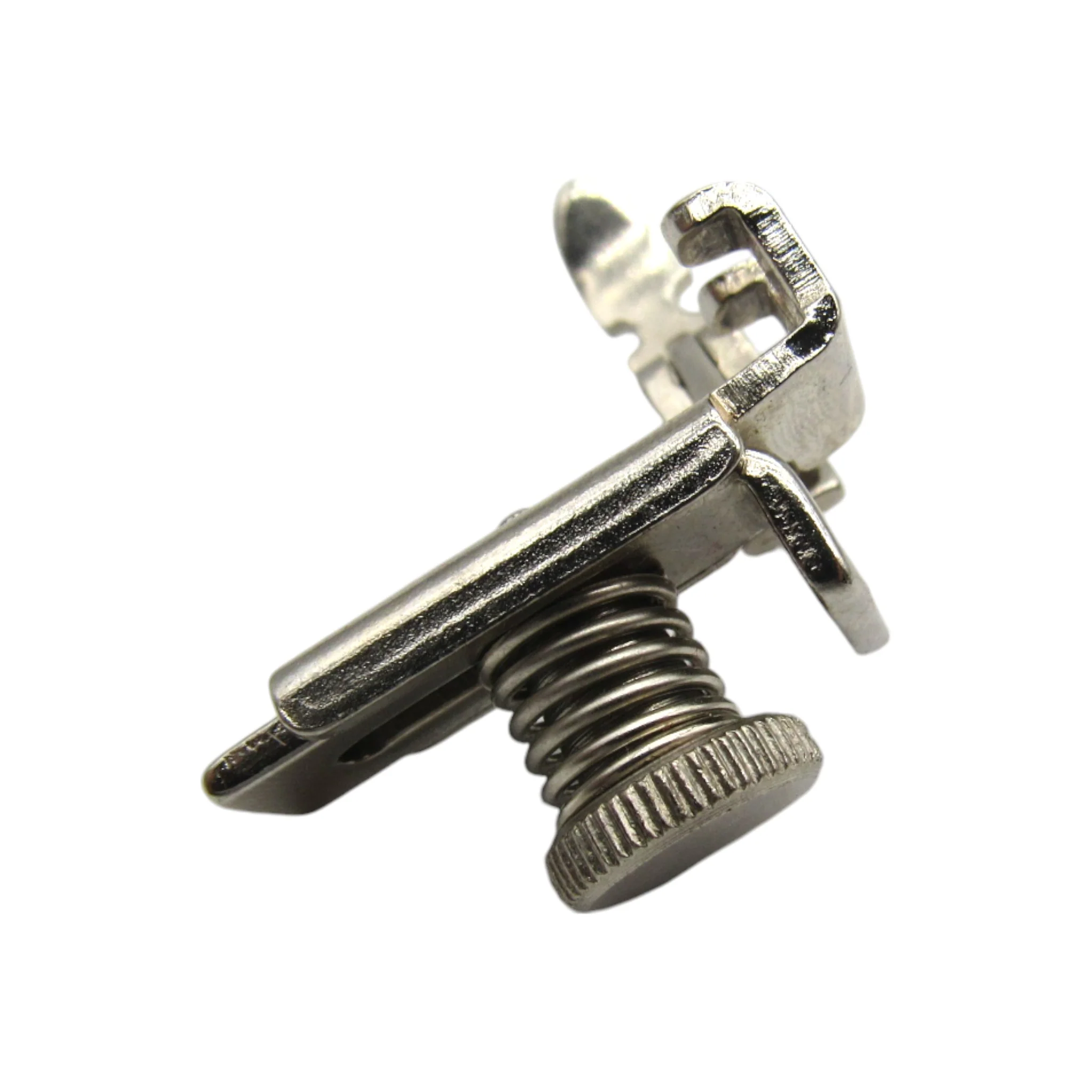

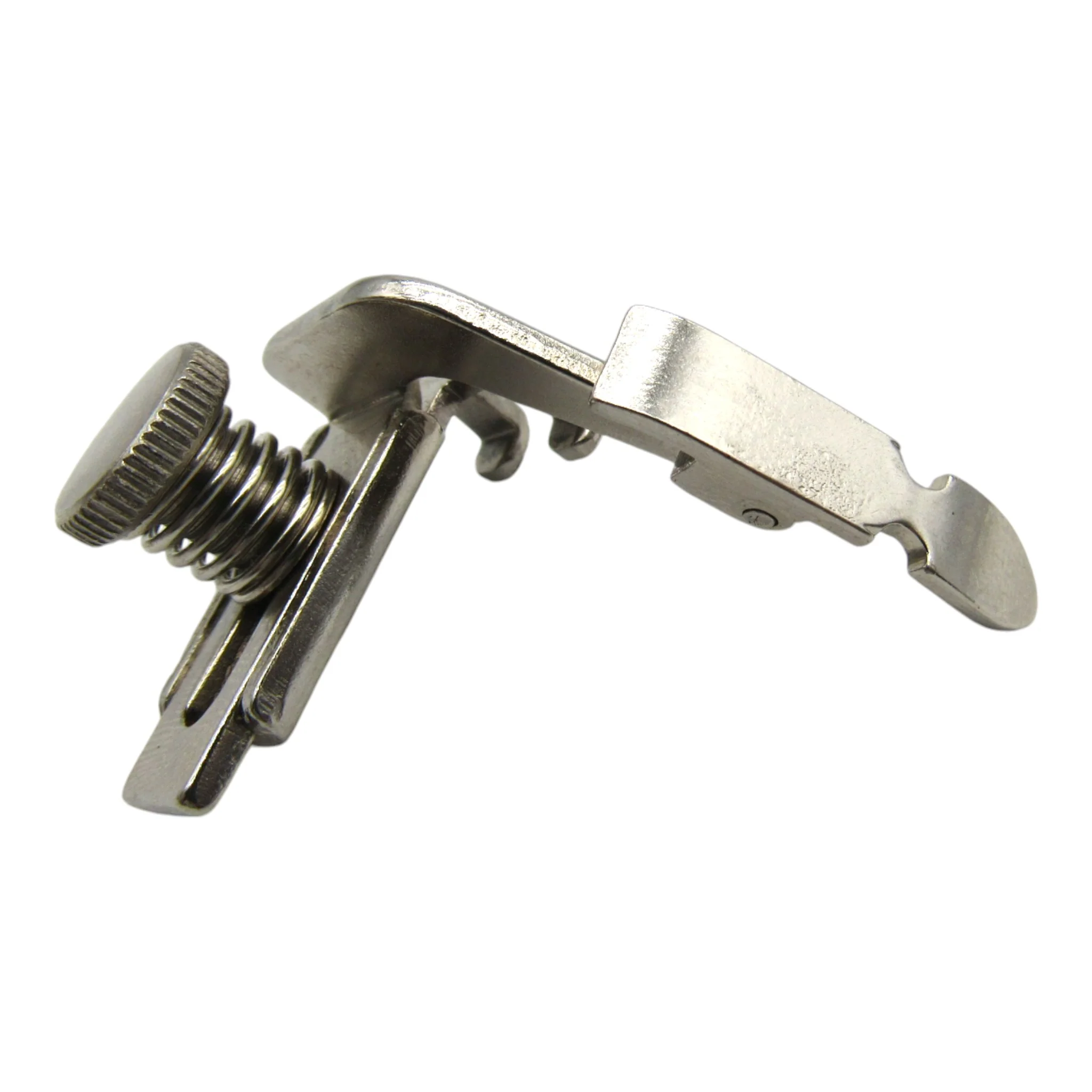

Genuine Original Singer Slant Needle Adjustable Zipper Foot - Part # 161166

Genuine Original Singer Part - Authentic Singer slant needle adjustable zipper foot that makes it easy to place stitching close to a raised edge. This versatile foot can be adjusted to either the right or left side of the needle, and the hinged design allows it to ride over pins, heavy layers of fabric, or cross seams.

Part Number:

• Singer Part # 161166

Key Features:

• Genuine Singer part - Original equipment, not a reproduction
• Slant needle design - Designed specifically for Singer's slant shank models
• Adjustable positioning - Can be positioned on either right or left side of needle
• Hinged construction - Rides over pins, heavy layers, and cross seams
• Narrow toe design - Better visibility and precision stitching
• Excellent condition - Well-preserved vintage original foot
• Extensive compatibility - Fits over 100 Singer slant shank models

Compatible Singer Models:

• 301, 301A

Slant-O-Matic Series:

• 401A, 403A, 404, 417

Rocketeer Series:

• 500A, 503A

Touch-N-Sew 600 Series:

• 600, 603, 604, 620, 625, 626, 628, 629, 630, 635, 636, 638, 639, 645, 646, 648, 649

Touch-N-Sew 700 Series:

• 714, 719, 724, 734, 737, 750, 755, 756, 758, 770, 774, 775, 776, 778

900 Series:

• 900, 920, 925, 935U

1000 Series:

• 1030, 1036, 1060, 1100

1400 Series:

• 1411N, 1411U, 1425N, 1425U

2000 Series:

• 2000, 2001, 2005, 2010

4000 Series:

• 4552, 4562, 4572, 4610, 4611, 4613, 4617, 4622, 4623

5000 Series:

• 5910, 5932

6000 Series:

• 6230, 6233, 6234, 6235, 6244, 6267, 6268

7000 Series:

• 7000, 7004, 7005, 7011, 7028, 7029, 7033, 7035, 7037, 7043, 7050, 7060

8000 Series:

• 8019

9000 Series:

• 9005, 9008, 9010, 9015, 9018, 9020, 9022, 9027, 9030, 9032, 9034, 9044
• 9110, 9113, 9117, 9124, 9130, 9133, 9134, 9137, 9143
• 9210, 9217, 9224, 9240
• 9323, 9334
• 9410, 9416, 9417, 9420, 9423, 9430, 9432, 9444
• 9900

Other Models:

• 100G, 1200, 30920, 93220, 93234, DX14C

What It's Used For:

This adjustable zipper foot makes it easy to place stitching close to a raised edge, making it ideal for installing zippers, piping, and cording. The adjustable design allows you to position the foot on either side of the needle for maximum versatility, while the narrow toe provides better visibility of your stitching area.

Primary Applications:

• Zipper installation - Stitch close to zipper teeth on either side
• Piping - Sew close to raised piping edges without catching the cord
• Cording - Apply decorative cording with precise placement
• Cored seams - Stitch close to raised edges in seams
• Heavy fabrics - Hinged design rides over thick layers
• Cross seams - Easily navigate over intersecting seams
• Pin sewing - Hinge allows foot to ride over pins without stopping

How It Works:

Attachment: This is a slant shank presser foot that attaches directly to the presser bar using a screw, replacing the entire presser foot and shank assembly. It's designed specifically for Singer machines with a slanted needle bar.

Adjusting Position:

1. Loosen the adjusting screw or dial on the foot
2. Slide the foot to the desired side (right or left) of the needle
3. Position so the edge runs against the zipper teeth or cording
4. Re-tighten the screw to lock in place
5. Manually turn the hand wheel to ensure needle clears the foot
6. Sew along the edge with the narrow toe keeping stitching straight

For the opposite side: Reposition fabric, loosen the screw, slide the foot to the other side of the needle, and re-tighten.

Key Advantages:

• Adjustable positioning - Switch between right and left side of needle for maximum flexibility
• Better visibility - Narrow toe design provides clear view of stitching area
• Hinged design - Glides smoothly over pins, heavy layers, and cross seams without catching
• Close stitching - Places stitches precisely next to raised edges
• Versatile applications - Works for zippers, piping, cording, and cored seams
• Time-saving - No need to remove pins while sewing
• Professional results - Consistent, precise stitching lines

Why Choose This Genuine Part:

• Authentic Singer part - Original equipment, not a reproduction
• Excellent condition - Well-preserved vintage original foot
• Rare and hard to find - Original slant needle adjustable zipper feet are increasingly scarce
• Adjustable design - More versatile than fixed zipper feet
• Hinged construction - Superior performance over pins and thick layers
• Narrow toe design - Better visibility than standard zipper feet
• Extensive compatibility - Fits over 100 Singer slant shank models
• Vintage quality - Built to Singer's original standards
• Professional results - Precise stitching close to raised edges

Important Notes:

• Genuine original Singer part
• Part # 161166
• Excellent condition
• Slant needle, slant shank design
• Does NOT fit low-shank or vertical needle machines
• Adjustable to right or left side of needle
• Hinged design rides over pins, heavy layers, and cross seams
• Narrow toe provides better visibility
• Always manually turn hand wheel after adjusting to ensure needle clears foot
• Fits Singer models listed above
• Limited availability - original parts are rare

Condition: Vintage original part in excellent condition.
