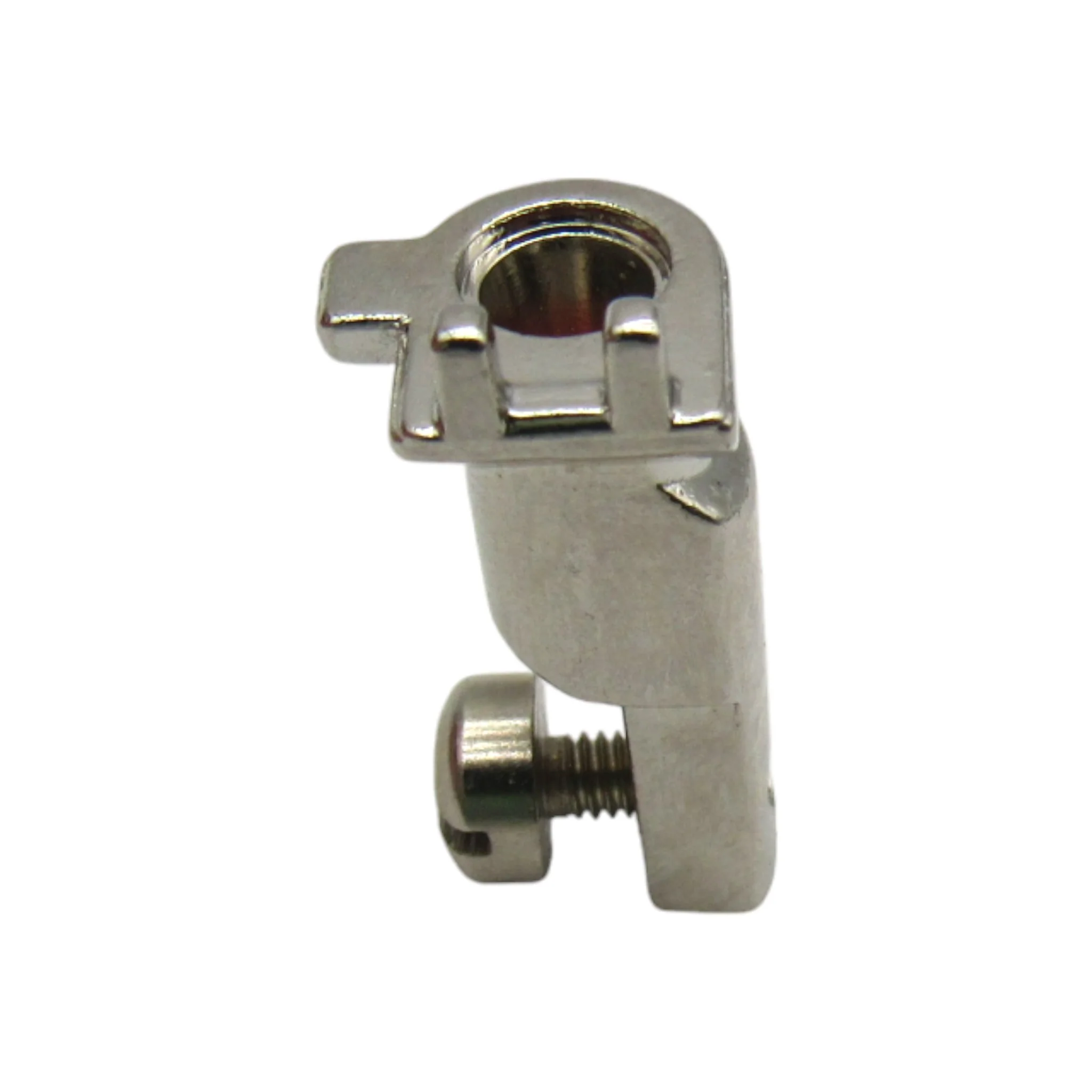

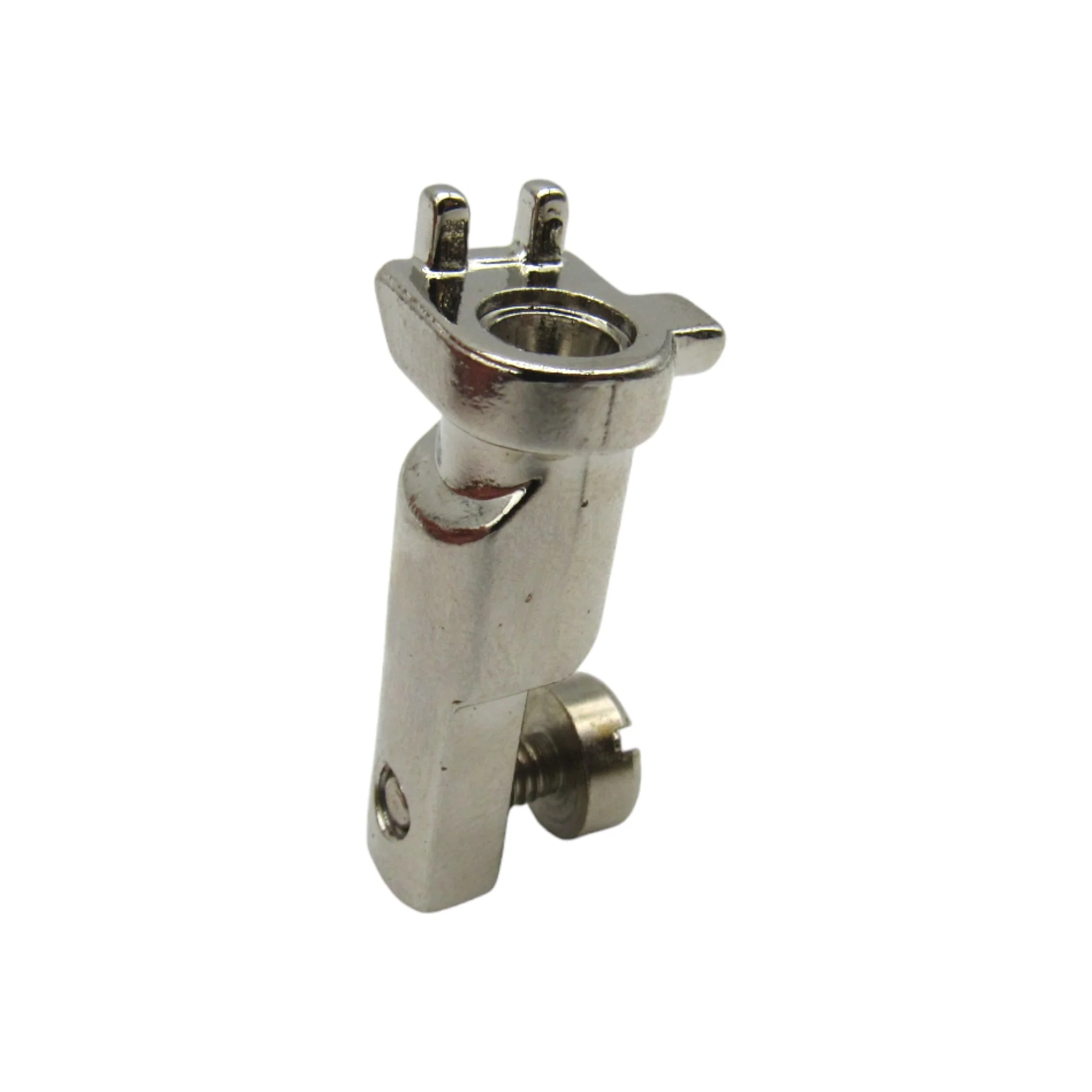

Low-Shank Foot Adaptor for Bernina OLD STYLE Machines

Cost-effective adapter that allows Bernina OLD STYLE machine owners to use generic, standard low-shank presser feet. This converter expands your presser foot options for specialized tasks without the expense of Bernina-branded feet.

IMPORTANT: Old Style vs. New Style

This is an OLD STYLE adapter. Bernina uses a proprietary presser foot system, and Old Style and New Style adapters are NOT interchangeable. To identify your machine style:

• Old Style: White sticker with BLACK numbers/letters on feet, rounded shank back with no cut-out
• New Style: White sticker with RED numbers/letters on feet, squared shank with notch on back

This adapter fits machines with maximum stitch width of 5.5mm (530-1630 series). It will NOT fit New Style 9mm machines.

Product Specifications

• Part Number: 0019477000
• Type: Low-shank foot adapter (OLD STYLE)
• Function: Converts Bernina proprietary system to standard low-shank system
• Compatibility: Bernina OLD STYLE machines (5.5mm stitch width)

How It Works

• Attachment to Machine: Adapter attaches to presser foot bar just like a regular Bernina OLD STYLE foot using existing screw-on mechanism
• Attachment of Generic Feet: Once secured, standard low-shank presser feet (screw-on or snap-on with additional adapter) attach to bottom using simple screw
• Expanded Options: Use generic low-shank feet for embroidery, quilting, cording, and more specialized tasks
• Important: Ensure generic foot's stitch width is compatible with your machine's maximum 5.5mm stitch width

Benefits

• Cost-Effective: Access inexpensive generic presser feet for less frequently used sewing tasks
• Versatility: Expand your presser foot collection without investing in expensive Bernina-branded specialty feet
• Compatibility: Works with standard low-shank feet from Singer, Brother, and other brands

Compatible Bernina Models (OLD STYLE)

530, 532, 534, 540, 600, 610, 640, 642, 644, 700, 707, 708, 709, 717, 718, 719, 730 (not Artista 730), 731, 732, 740, 741, 742, 744, 800, 801, 802, 803, 807, 808, 809, 810, 811, 817, 818, 819, 830, 831, 832, 840, 841, 842, 850, 900, 910, 930, 931, 932, 933, 940, 950, 1000, 1000+, 1001, 1004, 1005, 1006, 1008, 1010, 1011, 1015, 1020, 1030, 1031, 1080, 1090, 1120, 1130, 1230, 1260, 1530, 1630

Note

This adapter is designed for Bernina OLD STYLE machines only. Not compatible with Bernina NEW STYLE machines (post-1996 models with 9mm stitch widths), which require a different adapter.
