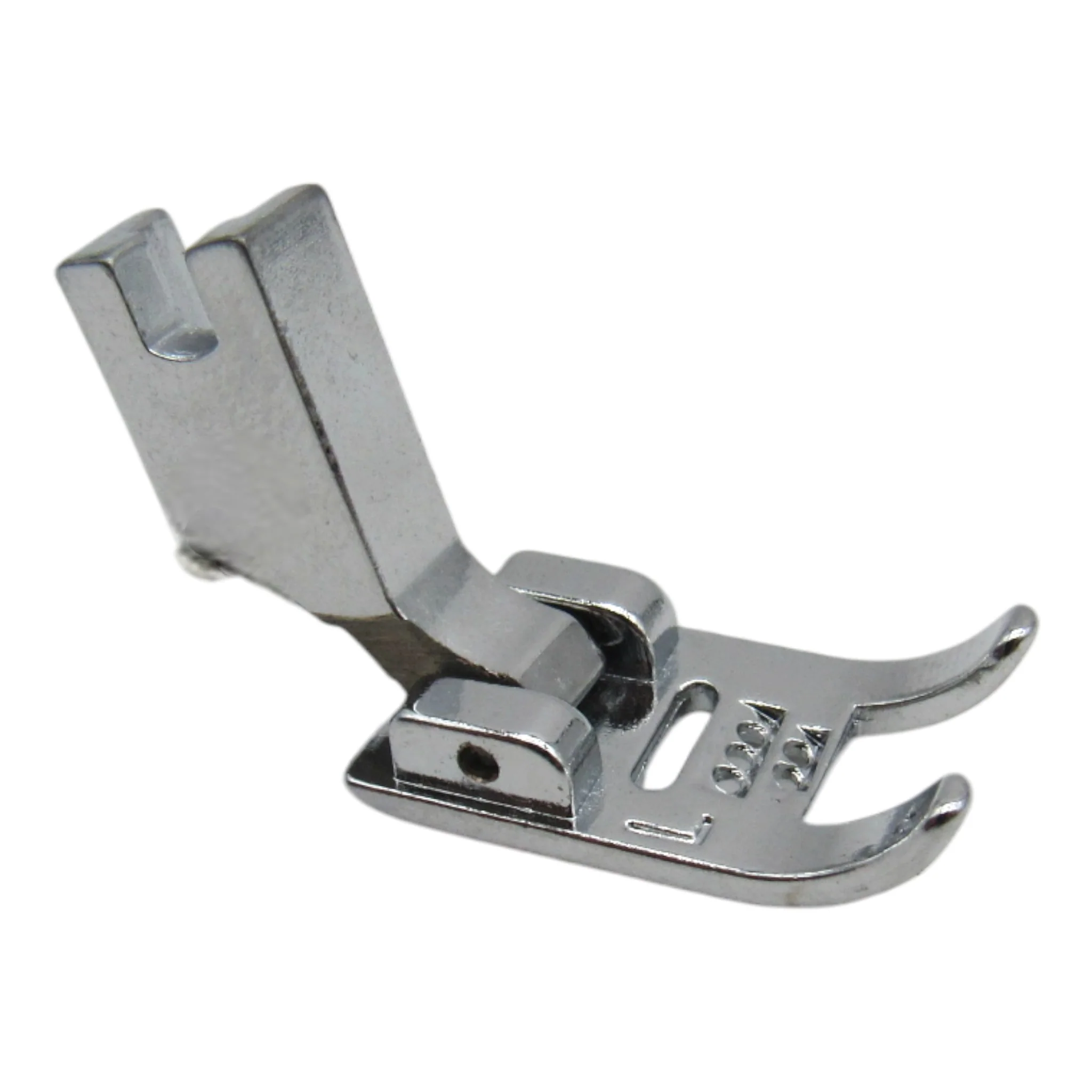

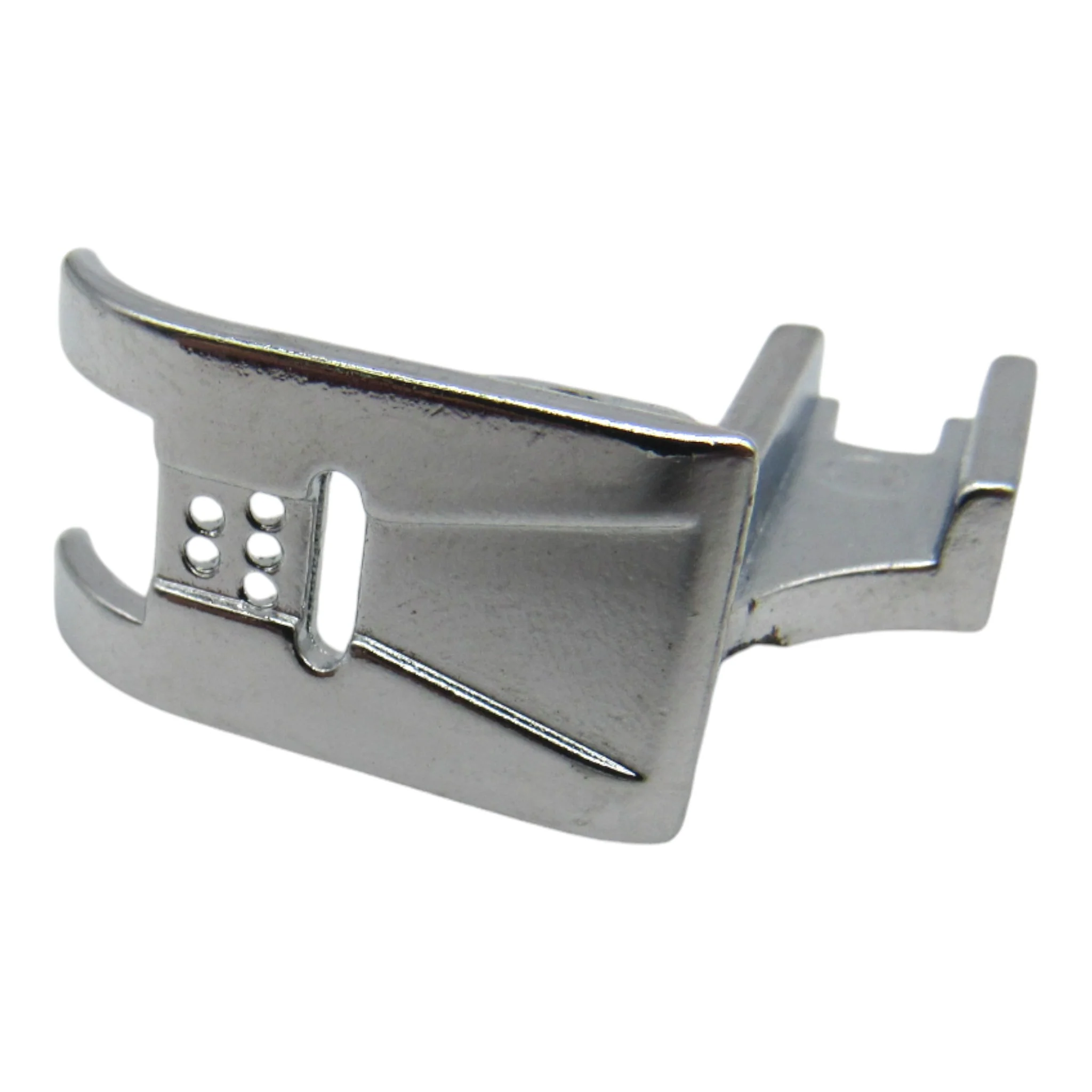

Multi Cord Foot for Singer Slant Needle (Slant Shank) Machines

Part Number: P42688

This specialized multi cord foot is designed for Singer slant needle sewing machines, featuring durable all-metal hinged construction. Simultaneously guide and stitch multiple strands of cord, yarn, or decorative thread onto fabric, creating beautiful parallel lines of texture and color with professional results.

Key Features:

• All-metal hinged construction for long-lasting durability
• Multiple parallel grooves accommodate 3, 5, or 7 cords depending on cord thickness
• Open toe design provides excellent visibility
• Channels keep cords evenly spaced and perfectly parallel
• Hands-free cord guidance for easy operation
• Compatible with Singer slant needle (slant shank) machines

Perfect For:

• Embellishment: Add parallel lines of texture and color to garments and accessories
• Home Décor: Create decorative patterns on pillows, table runners, and upholstery
• Heirloom Sewing: Craft intricate, delicate patterns using fine cords
• Crafts: Add dimension and visual interest to various projects

How It Works:

The multi cord foot features several parallel grooves or channels on its underside and an open toe area through which the cords are fed. Thread your cords (typically 3, 5, or 7 depending on cord thickness) through the channels. The grooves keep individual cords evenly spaced and perfectly parallel as they pass under the needle area. Use a wide zigzag stitch, adjusting the stitch width and length so the needle stitches across all the cords, tacking them down securely with each pass. The foot handles the guiding of the cords, freeing your hands to simply guide the fabric for straight lines or gentle curves.

Stitching Techniques:

• Wide Zigzag Stitch: Primary stitch for securing multiple cords
• Adjustable Width/Length: Customize stitch to cover all cords evenly
• Thread Selection: Use clear or matching thread to let cords stand out as the primary design element
• Design Options: Create straight lines or gentle curves with ease

Tips for Best Results:

• Adjust zigzag width to cover all cords being used
• Use clear or matching thread for invisible stitching
• Open toe design provides excellent visibility while sewing
• Channels maintain perfect spacing automatically
• Works with various cord, yarn, and thread types

Compatible with Singer Slant Needle Models:

301, 401A, 403A, 404, 411, 417, 421, 431, 500A, 503A, 600, 603, 604, 620, 625, 626, 628, 629, 630, 635, 636, 638, 639, 645, 646, 648, 649, 714, 719, 724, 734, 737, 750, 755, 756, 758, 770, 774, 775, 776, 778, 900, 920, 925, 935U, 100G, 1030, 1036, 1060, 1100, 1200, 1411N, 1411U, 1425N, 1425U, 2000, 2001, 2005, 2010, 4552, 4562, 4572, 4610, 4611, 4613, 4617, 4622, 4623, 5910, 5932, 6230, 6233, 6234, 6235, 6244, 6267, 6268, 7000, 7004, 7005, 7011, 7028, 7029, 7033, 7035, 7037, 7043, 7050, 7060, 8019, 9005, 9008, 9010, 9015, 9018, 9020, 9022, 9027, 9030, 9032, 9034, 9044, 9110, 9113, 9117, 9124, 9130, 9133, 9134, 9137, 9143, 9210, 9217, 9224, 9240, 9323, 9334, 9410, 9416, 9417, 9420, 9423, 9430, 9432, 9444, 9900, 30920, 93220, 93234, DX14C

Quality aftermarket part designed for Singer slant needle machines.
