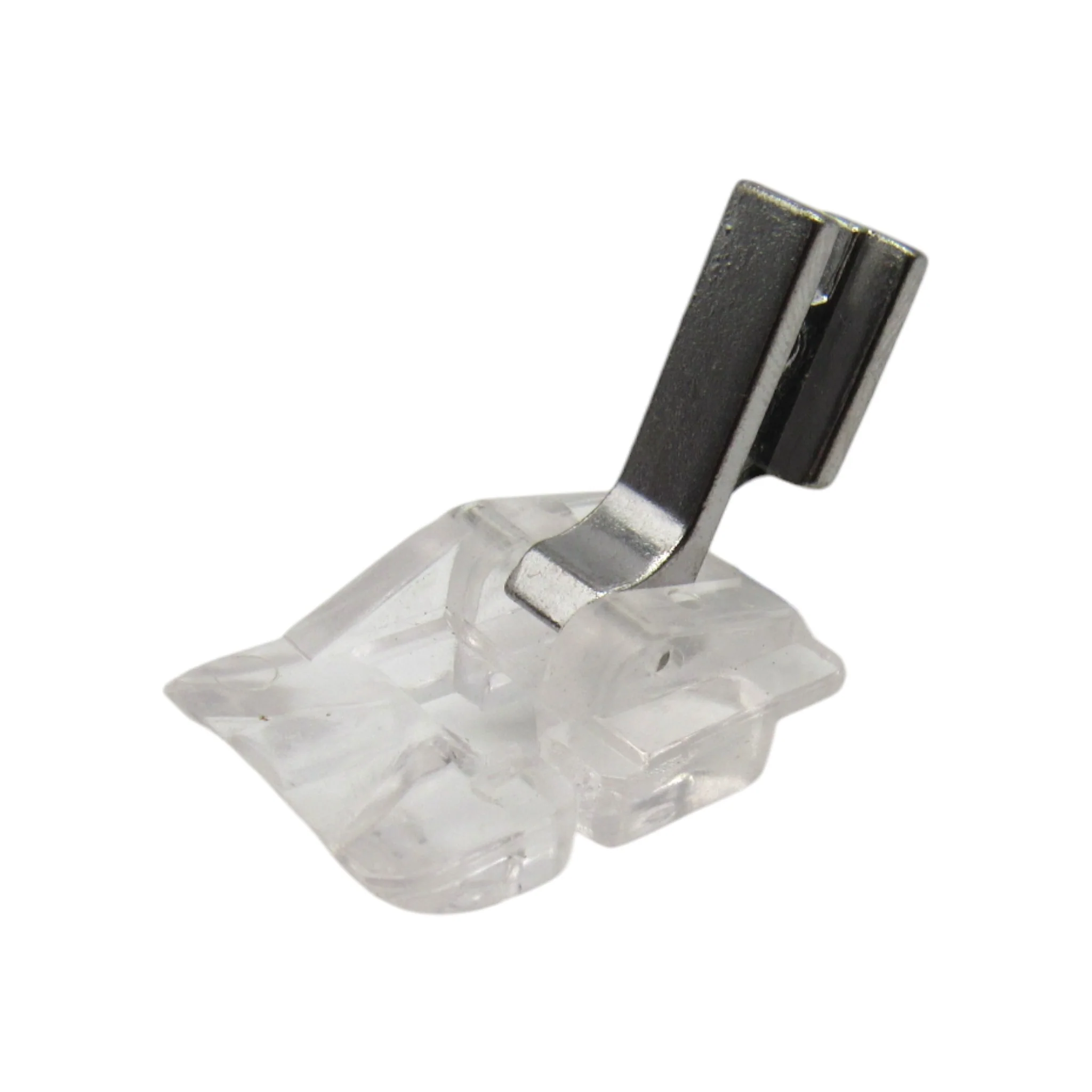

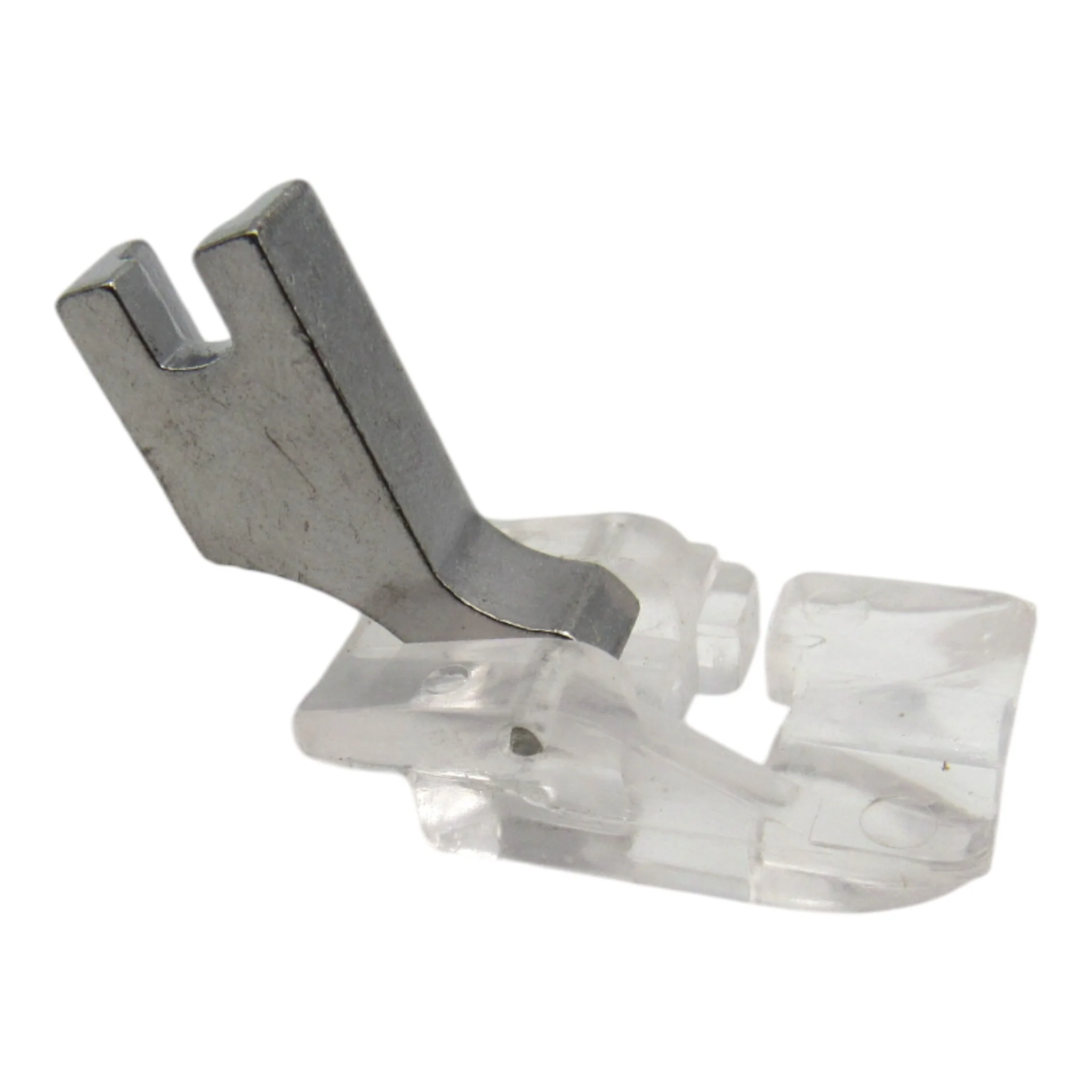

Piping / Welting Foot (1/8" or 3/16") for Singer Slant Needle (Slant Shank) Machines

This specialized piping/welting foot is designed for Singer slant needle sewing machines, featuring a metal shank with hinged construction and durable plastic foot. Available in two sizes—1/8" or 3/16"—to match your cording diameter. Choose your desired size from the drop-down menu. Perfect for creating and attaching custom piping or welt cord to fabric edges, providing a professional and neat finish for upholstery, home décor, and garments.

Key Features:

• Metal shank with hinged construction for durability and smooth operation
• Durable plastic foot with deep groove on underside
• Available in two sizes: 1/8" or 3/16" to match cording diameter
• Deep groove holds piping cord in place and guides it smoothly
• Stitches very close to cord without sewing through it
• Compatible with Singer slant needle (slant shank) machines

Perfect For:

• Upholstery: Professional piping on furniture, cushions, and upholstered pieces
• Home Décor: Pillows, cushion covers, curtain edges, and decorative accents
• Garments: Piped edges on jackets, coats, pockets, and necklines
• Creating Custom Piping: Wrap fabric around cording and stitch in single pass for bespoke piping
• Inserting Piping into Seams: Sandwich pre-made piping between fabric layers with hidden stitching

How the Piping Foot Works:

The piping foot features a deep groove on its underside that holds the piping cord in place and guides it smoothly as you sew. This design allows the needle to stitch very close to the cord without sewing through it, ensuring consistent, straight stitching right against the edge of the piping—difficult to achieve with a standard or even a zipper foot. The groove width (1/8" or 3/16") should match the diameter of the cording you're using for best results. The hinged metal shank allows the foot to navigate varying fabric thicknesses smoothly.

Choosing the Right Size:

• 1/8" Foot: For smaller diameter cording (approximately 1/8" or 3mm). Ideal for delicate piping on garments, pillows, and lightweight projects
• 3/16" Foot: For larger diameter cording (approximately 3/16" or 5mm). Perfect for upholstery, heavier home décor projects, and bold piping accents
• Match Groove to Cord: The groove width should match your cording diameter for smooth feeding and precise stitching

Using the Foot:

1. Creating Custom Piping: Cut bias fabric strip. Wrap strip around cording with right side out. Place wrapped cord under foot with cord in groove. Stitch close to cord using straight stitch—fabric wraps around cord creating custom piping
2. Attaching Piping to Fabric: Place piping on right side of fabric with raw edges aligned. Position piping cord in groove. Stitch close to cord, attaching piping to fabric edge
3. Inserting Piping into Seams: Place piping on right side of one fabric layer. Place second fabric layer on top, right sides together, sandwiching piping. Position cord in groove. Stitch close to cord—final seam is snug against cord with previous stitching hidden
4. Adjust Needle Position: Move needle position left or right if needed to stitch closer to cord

Tips for Best Results:

• Choose foot size (1/8" or 3/16") that matches your cording diameter
• Use bias-cut fabric strips for custom piping to allow smooth curves
• Position cord in groove for guided, consistent stitching
• Stitch close to cord without sewing through it
• Hinged metal shank handles varying fabric thicknesses smoothly
• For tight curves, clip seam allowance of piping fabric
• Professional finish that's difficult to achieve with standard feet

Compatible with Singer Slant Needle Models:

301, 401A, 403A, 404, 411, 417, 421, 431, 500A, 503A, 600, 603, 604, 620, 625, 626, 628, 629, 630, 635, 636, 638, 639, 645, 646, 648, 649, 714, 719, 724, 734, 737, 750, 755, 756, 758, 770, 774, 775, 776, 778, 900, 920, 925, 935U, 100G, 1030, 1036, 1060, 1100, 1200, 1411N, 1411U, 1425N, 1425U, 2000, 2001, 2005, 2010, 4552, 4562, 4572, 4610, 4611, 4613, 4617, 4622, 4623, 5910, 5932, 6230, 6233, 6234, 6235, 6244, 6267, 6268, 7000, 7004, 7005, 7011, 7028, 7029, 7033, 7035, 7037, 7043, 7050, 7060, 8019, 9005, 9008, 9010, 9015, 9018, 9020, 9022, 9027, 9030, 9032, 9034, 9044, 9110, 9113, 9117, 9124, 9130, 9133, 9134, 9137, 9143, 9210, 9217, 9224, 9240, 9323, 9334, 9410, 9416, 9417, 9420, 9423, 9430, 9432, 9444, 9900, 30920, 93220, 93234, DX14C

Quality aftermarket part designed for Singer slant needle machines. Available in 1/8" or 3/16" sizes—choose from drop-down menu to match your cording diameter.
