Singer 29K Bobbin Winder Assembly - Industrial-Grade Large Bobbin Winder

Part Number: 82090

Type: Industrial-grade bobbin winding assembly (Generic replacement)

Bobbin Style: Large bobbins (Part #82552)

Winder Type: Manual friction-drive unit

Overview:

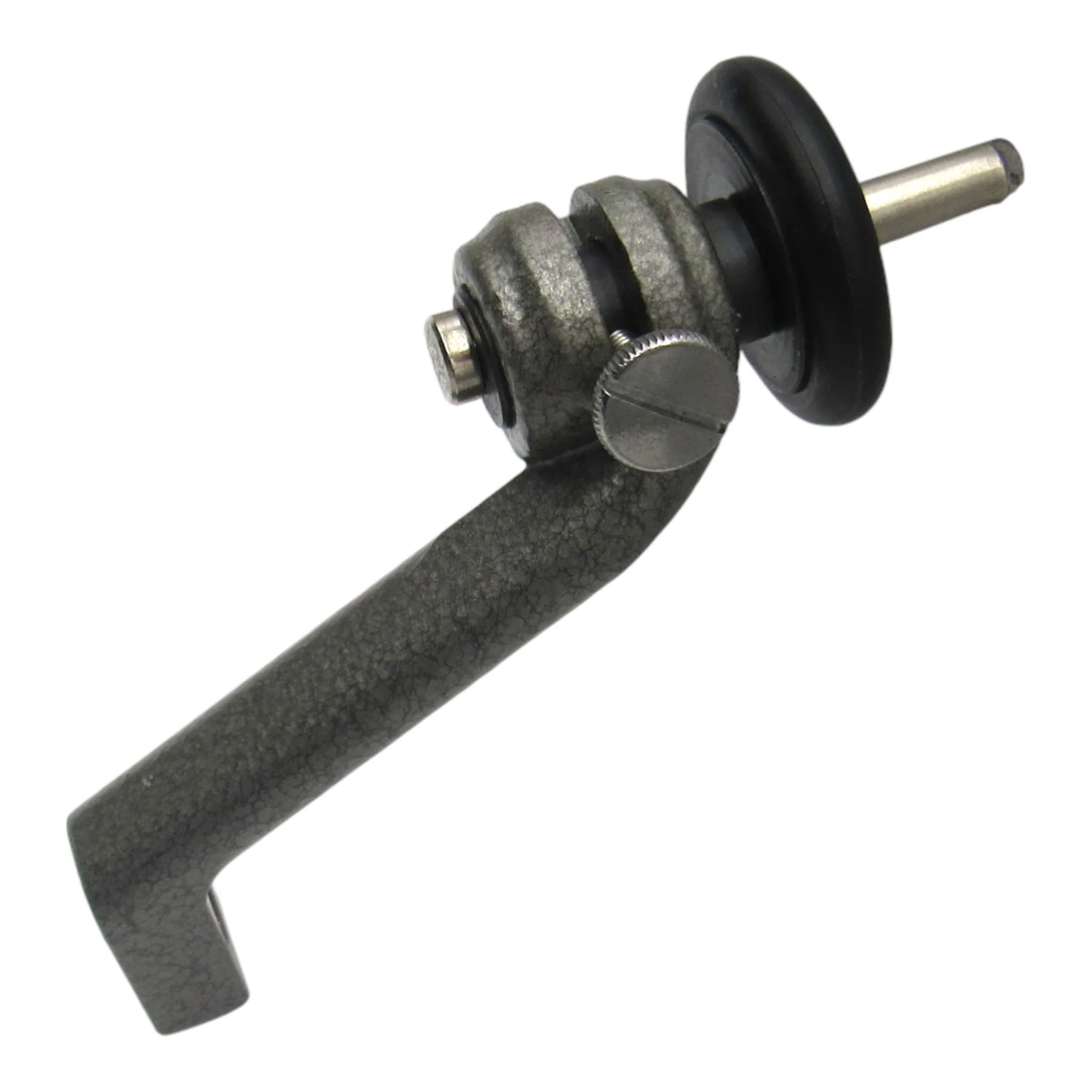

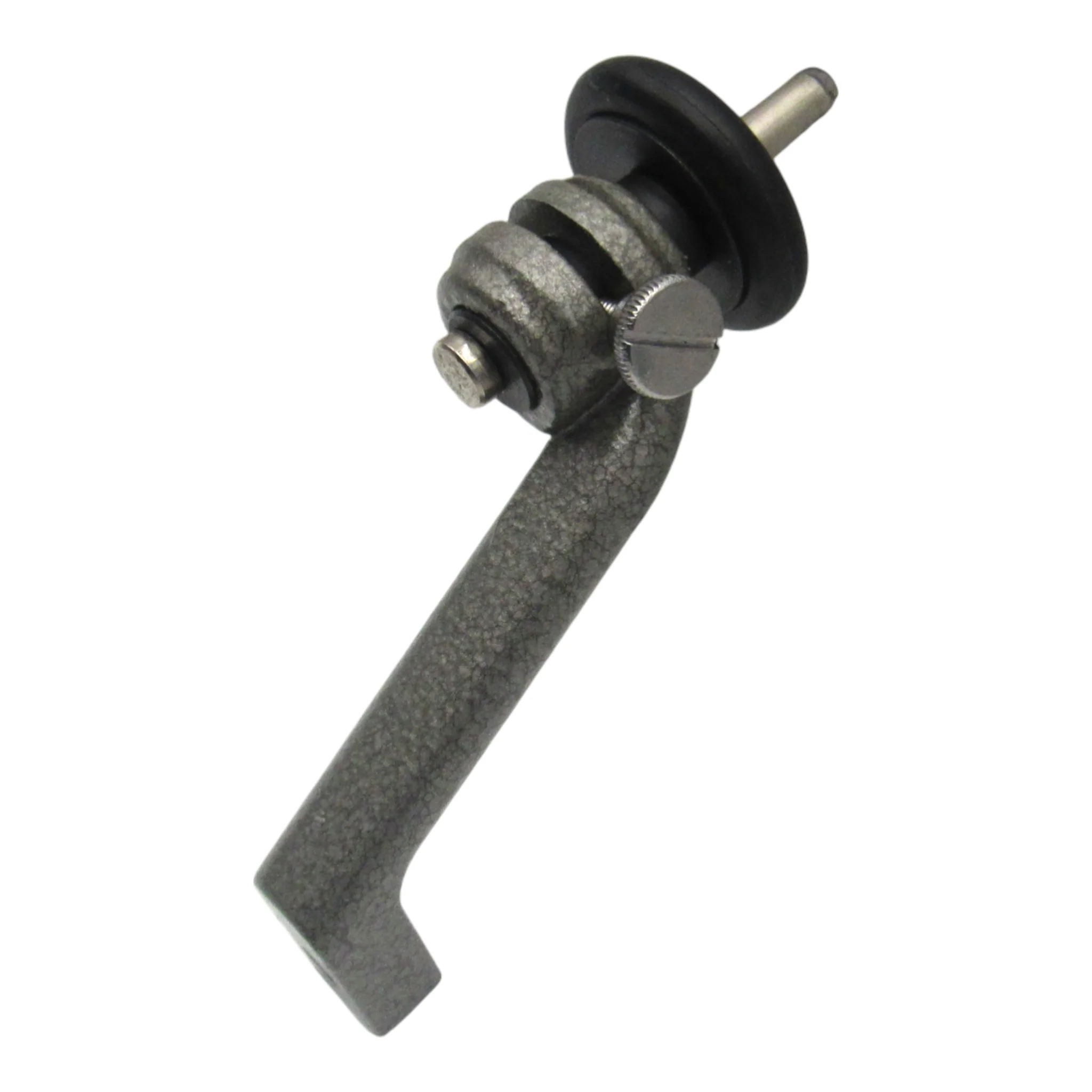

The Bobbin Winder (Part #82090) is an industrial-grade winding assembly designed for specialized "large bobbin" sewing machines. It is a complete mechanical unit that facilitates the winding of thread onto high-capacity bobbins while the machine is in operation. Built for professional leather repair and cobbler work, this bobbin winder delivers reliable performance in demanding industrial environments.

Guaranteed Machine Compatibility:

This part is specifically engineered for the Singer 29K Series industrial shoe patcher (cobbler) machines used for leather repair:

Singer 29K72: This is the primary model for this part; it is a long-arm "boot patcher" industrial machine with a 17-½ inch arm designed for stitching high-top boots and golf bags.

Singer 29K Series: Fits other variants in the 29K class that are equipped to use large bobbins, including the 29K71 and 29K73, provided they have the large-capacity hook assembly.

Singer 29U Series: Compatible with models such as the 29U171, which often share parts with the 29K class.

Key Identification Features:

If you are unsure if this part fits your machine, check the following specifications:

Bobbin Style: This winder is for Large Bobbins (typically Part #82552). It will NOT fit machines using the standard "small" patcher bobbins (Part #8604). For small-bobbin Singer 29K models, you need Part #82087 instead.

Winder Type: It is a manual friction-drive unit that mounts to the machine's arm and engages with the handwheel.

Arm Length: It is most commonly found on the 17-½ inch long-arm models (like the 29K72) designed for stitching high-top boots and golf bags.

Function and Operation:

As a manual industrial winder, it serves several key roles in professional leatherwork:

Friction-Driven Operation: The winder operates by being pushed against the machine's handwheel to engage rotation. This simple, reliable mechanism has been proven in industrial settings for decades.

Independent Winding: Allows for bobbins to be filled without unthreading the main needle, saving valuable time during professional leatherwork. You can wind a fresh bobbin while keeping your current project threaded and ready to go.

Adjustable Stopper: Features a built-in stopper that can be adjusted to control exactly how much thread is wound before the mechanism automatically clicks and disengages. This prevents overfilling and ensures consistent bobbin tension.

Industrial-Grade Construction: Built to withstand the demands of professional cobbler shops and leather repair businesses. This is a complete mechanical unit, ready to install and put to work.

Applications:

Perfect for professional leather repair, cobbler work, industrial shoe patching, high-top boot construction, golf bag manufacturing, and any heavy-duty leatherwork requiring large-capacity bobbins.

Installation:

This is a complete bobbin winder assembly that mounts to your Singer 29K machine's arm. The friction-drive design engages with your machine's handwheel for reliable operation.

Why Choose Part #82090?

When your industrial Singer 29K bobbin winder needs replacement, Part #82090 delivers the reliability and performance you need to keep your professional leather repair business running smoothly. This generic replacement offers excellent value while maintaining the quality standards required for industrial use.

Important Note: This is the LARGE bobbin winder (Part #82090). If your Singer 29K uses small bobbins, you need Part #82087 instead. Check your current bobbin size before ordering.
